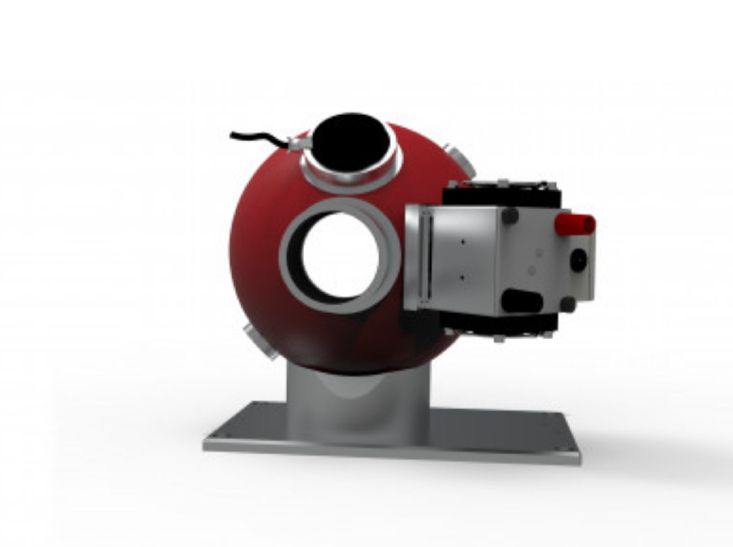

-Integrating sphere: 170 mm internal diameter (Base sphere model UMTB-170-S-1) with barium sulfate coating (ODP97).
-Accessories: Pressure and suction fan for lamp cooling; 12V
-Light Source: Halogen lamp 12V/100W, frosted (LH-100F-UV)
-Control electronics: ED-ISS-100-MD elektronic device in a 3/4 19“ rack mounting.
-Lamp power supply: Precision power adapter for halogen lamps with a16bit D/A converter for the lamp current. Ramp function during switching on/off for stress reduction of the lamp filament. RS232 interface for remote control using the optometer (LPS-100-RM). This power supply is part of the ED-ISS-100-MD.
-Power Supply: AC input for (115 - 230) V / (50 - 60) Hz to the ED-ISS-100-MD. The electronic device ED-ISS-100-MD supplies the optometer, lamp power supply and fans.
-Calibration:
Spectral Radiance: At 2856 K and 3100 K, spectral range 380 nm to 780 nm in 10 nm steps, including calibration certificate.
Luminance: At 2856 K with calibration certificate.
-Light Output Port: 50 mm with resolution tube to suppress the lateral incident light (UMPA-2.0-xx)
-Uniformity: better 98 %
-Luminance (with diffuser window) 2856K:
typ. (3 - 7.500) cd/m²
min. (3 - 6.500) cd/m²
-Luminance (with diffuser window) 3100K:
typ. (5 - 15.000) cd/m²
min. (5 - 13.000) cd/m²
-Spectral Radiance (with diffuser window) 2856K:
22 mW/(m²sr) @ 380nm, aperture 100% open
360 mW/(m²sr) @ 800nm, aperture 100% open
-Spectral Radiance (with diffuser window) 3100K:
46 mW/(m²sr) @ 380 nm, aperture 100 % open
750 mW/(m²sr) @ 800 nm, aperture 100 % open
-ΔCCT: ± 50 K over the specified intensity range
-Temperature range: (+5 to +30) °C, no condensation
