-Measurement range:
Luminance: OD0: 120000 cd/m², OD1: 12000 cd/m², OD2: 1200 cd/m² (at CCT 2960K with LH-100F-UV)
Luminance: OD0: 75000 cd/m², OD1: 7500 cd/m², OD2: 750 cd/m² (at CCT 2856K with LH-100F-UV)
-Typical applications: Uniform light source for pixel uniformity calibration and adjustment. Intensity control in three steps (OD0, OD1, OD2) by exchangeable neutral densnity attenuation filters.
-Calibration: Luminance at 100 % intensity. Optional calibration of the spectral radiance (380 nm to 1100 nm). Calibration certificate with description of the calibration procedure, reference standards applied, traceability and calibration uncertainty.
-Calibration uncertainty:
luminance (cd/m²): ±3.5% u(k=2)
color temperature [K]: ±2% u(k=2)
-Light Output Port: 19 mm
-Luminance:
Range: 3 levels
120000 cd/m², 12000 cd/m², 1200 cd/m² (at CCT 2960K with LH-100F-UV)
75000 cd/m², 7500 cd/m², 750 cd/m² (at CCT 2856K with LH-100F-UV)
OD0:
120000 cd/m² (at CCT 2960K with LH-100F-UV)
75000 cd/m² (at CCT 2856K with LH-100F-UV)
OD1:
12000 cd/m² (at CCT 2960K with LH-100F-UV)
7500 cd/m² (at CCT 2856K with LH-100F-UV)
ΔCCT = -10 K
OD2:
1200 cd/m² (at CCT 2960K with LH-100F-UV)
750 cd/m² (at CCT 2856K with LH-100F-UV)
ΔCCT = -20 K
-Lamp Connection: Two Banana type plugs

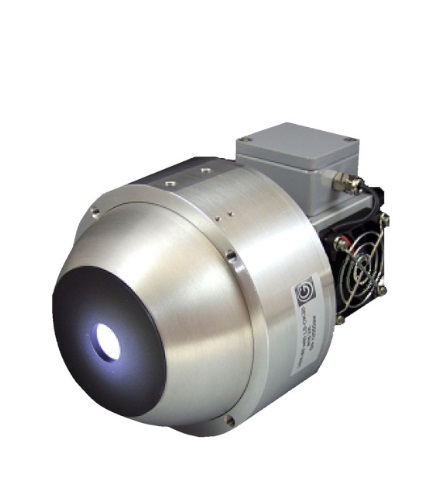

-Specifications: 80 mm ODM sphere with 19 mm light entrance port
