-Measurement range:
linear and logarithmic amplifier, radiant power measurement (W) with the integrating sphere calibrated from 400 nm to 1550 nm
-Typical applications:
Fast measurement of optical fibers, fast measurement with detector heads, AA, ADC and DAC measurements, flicker measurements
-Calibration:
Factory calibration. Traceable to international calibration standards
-Input Interfaces:
BNC-Connector (electrical)
FC-Connector (optical)
-Output Interfaces:
BNC-Connector, Output Voltage: ± 5V
USB
-ADC: 16 bit
-DAC: 16 bit
-Function generator:

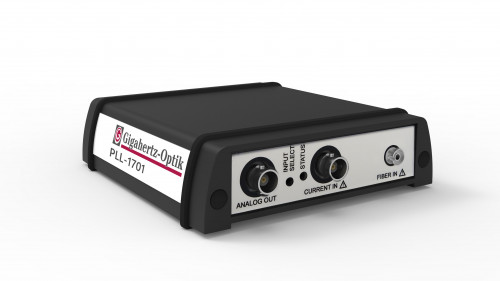

The PLL-1701 is able to provide electrical Signals on the BNC Output (function generator): -5 V to +5 V, max. 10000 Values, clock speed 3 µs – 900 µs
-Power Supply:
(9-24) VDC
200 mA bei 12 V
-Sampling rate: 100.000 SPS (samplings/s) with continuous data transmittance
-Interface:
USB V2.0 (Full Speed, HID Device)
RS422 (based on LVDS)
Limitation: Only one device can be connected by RS422.
Max. interfaces transmission speed: 100 kHz
-Weight: 550 g
-Dimensions: 173.3 mm x 36.2 mm x 124.4 mm
-Trigger
External signal: Low active, Trigger Level ca. 1V, Delay: Rise Time (16µs) + digitalization (15µs), Pre-Trigggering possible
Internal digital trigger: Delay 2µs ± 200ns.
-Temperature range:
Storage: (-10 to 50)°C
Operation: (10 to 30)°C
-Humidity: <80%, non-condensing
