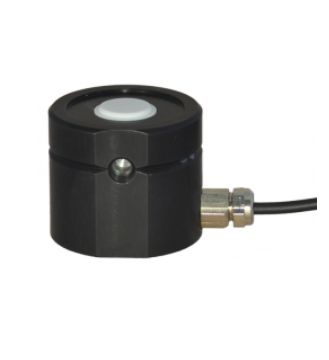

Spectral responsivity: radiometric (400 - 800) nm
Typical responsivity: 1.5 nA/(W/m²)
Max. signal current: 1 mA
Input optics: 11 mm Ø diffusor window
Input optics: Cosine F.O.V.
Housing: 37 mm Ø, 32 mm height
Mounting: side M6 thread hole
Connector: coaxial cable 2 m Long, with ITT connector (-4)
Temperature range: 5 - 40°C
min. signal current: depends on optometer
Rise time: 150 ns
Measurement ranges:
min (0.1 pA NEI): 6.67E-05 W/m²
max (200 µA): 1.33E+05 W/m²
max (1 mA): 6.67E+05 W/m²
