Sensor element
Sensor element: 316L stainless steel, flush mounted
Available ranges: 0 to 60'
Accuracy: Total Error Band ±0.1%, 16 bit digital error correction
Overpressure: Not to exceed 2x full scale range
Operating Temp: 14 to 176°F ( -10 to 80°C)
Temp. compensation: Digital over entire operating range
Output: 4-20 mA, 2-wire loop powered
Supply Voltage: 10 to 28 VDC
Load Resistance (Ω): mA: < (supply - 8V) / 0.02A
Communication: RS-485

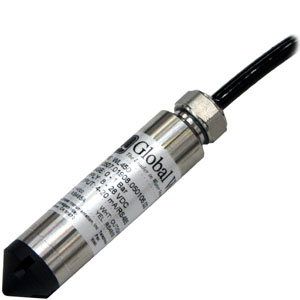

Water Level Transmitter Housing
Wetted Materials: 316L stainless steel, polyamide, fluorocarbon
Dimensions: 0.825" (21mm) diameter x 3-3/4" (95mm) long
Weight: 1Lb (453.6g)
Water Level Transmitter Cable
Cable: Hytrel-jacketed, vented & shielded
Temperature Range: -22 to 185°F ( -30 to 85°C)
Diameter: 0.23" (5.8mm)
Length: 100 ft
