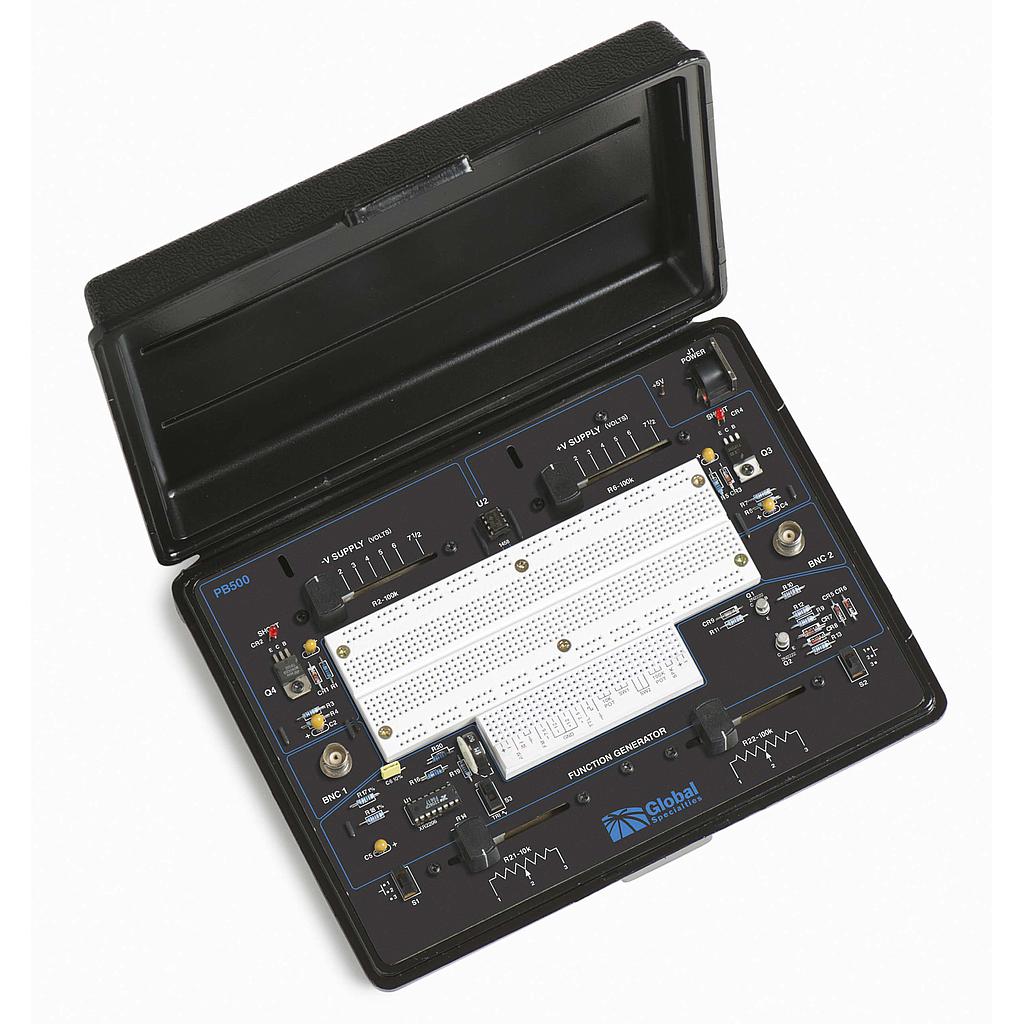

Global PB-500 Portable Analog Circuit Trainer

Name: Global PB-500 Portable Analog Circuit Trainer
Brand: Global Specialties

ModelPB-500

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Power Supplies

Fixed ±12 VDC @ 200 mA

Variable 0 to ±7.5 VDC @ 50 mA

Frequency

User variable by external capacitor (0.1 Hz to 100 kHz)

User FM control line

Duty Cycle

50% of all waveforms

Amplitudes (Typical)

Sine: 4 Vpp, 10 kΩ load

Triangle: 9 Vpp, 10 kΩ load

Square: 8 Vpp, 10 kΩ load

Signal Connections

All signals and functions connected to a solderless interconnect socket which has 5 tie-points available for each signal

Weight

1 lb 12 oz including AC power adapter

Overall Dimensions

2.56 in H x 7.5 in W x 10 in D
