Wastewater purification capacity for heavy metals removal, m³/hour (gpm) (max): 18 (80)
Process chamber length, mm (in): 156 (6)
Magnetic induction in the center of the bore, Т: 0,12
Max flow velocity, m/sec (in/sec): 0,2 (8)
Max pressure in the process chamber, MPa (psi): 0,16 (23)
Dynamic viscosity of the material, Pa·sec (lbf·s/ft²): 1 (0,02)
Max product temperature, ºС (ºF): 70 (158)
Power source parameters: Custom
Active power, kW: 9,5
Total max power, kVA: 22
Capacitor, kVAr: 40+25+25
Max dimensions, mm (in):

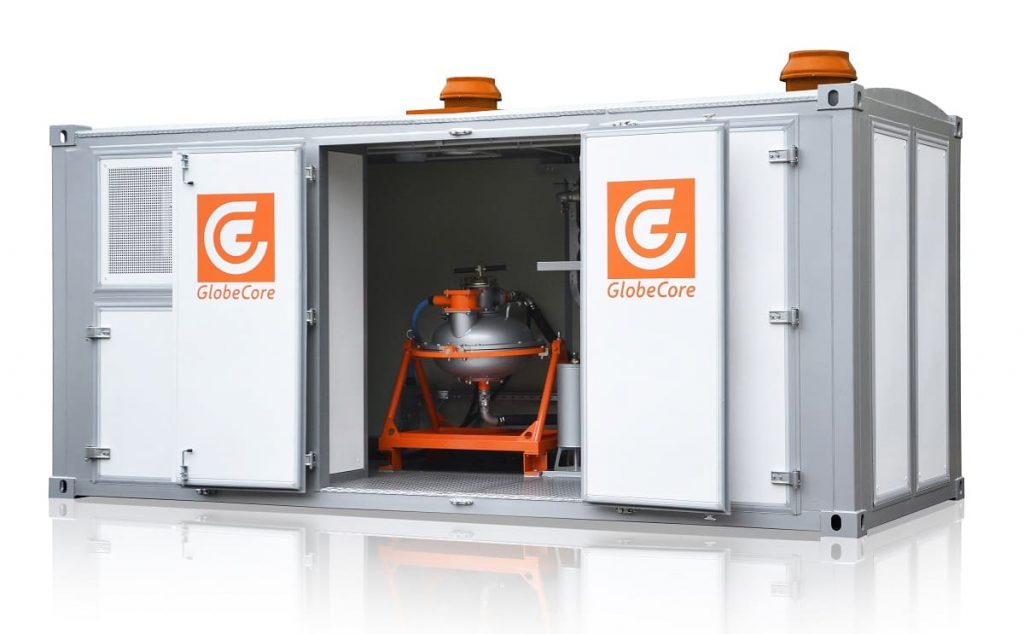

Container:
– length: 4800 (189)
– width: 2100 (83)
– height: 2500 (98)
AVS unit:
– length: 1060 (42)
– width: 910 (36)
– height: 1250 (49)
AVS control section:
– length: 1050 (41)
– width: 800 (31)
– height: 1960 (77)
Weight, kg (lb), max:
Container (with the unit and purification system included): 5000 (11000)
Process section: 380 (830)
Control section: 300 (660)
