GOLDSOL VLF-90M VLF High Voltage Test System (90KV/59mA, 3500W)

Power: 220V ± 10% AC (110V can be customized), 50/60Hz, single phase

AC output-Voltage (Peak): 1 to rated value (90KV)

Output frequency: 0.1Hz, 0.05Hz, 0.02 Hz, 0.01 Hz (auto variable frequency)

Load: 0.5μF (approx 6,000 ft of cable) @ 0.1 Hz

1.0μF (approx 12,000 ft of cable) @ 0.05 Hz

2.5μF (approx 30,000 ft of cable) @ 0.02 Hz

5.0μF (approx 60,000 ft of cable) @ 0.01 Hz

Stability of frequency: Fluctuation < 0.5%

AC voltage measurement accuracy: ±3%

AC voltage measurement resolution: 0.1KV

AC current measurement accuracy: ±3%

AC current measurement resolution: 0.1mA

Positive and negative voltage peak error: ≤3%;

Voltage waveform distortion: ≤3%;

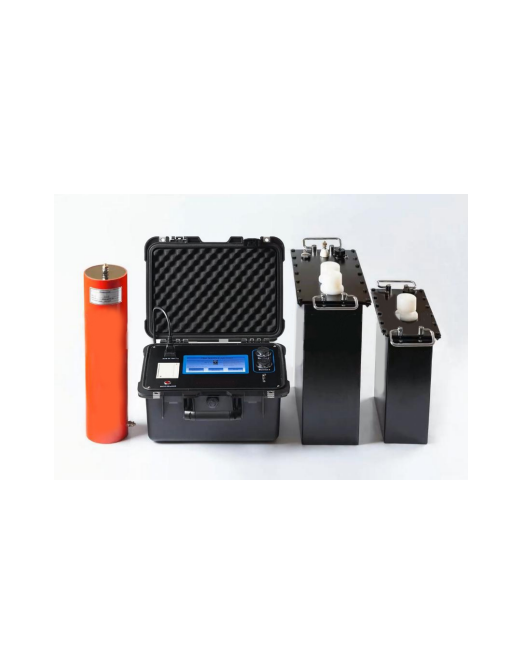

Construction: 1 Control unit + 2 Boosters

Ambient conditions of use: temperature Indoor and outdoor : -10ºC ～ + 50ºC.

Humidity:≤85%
