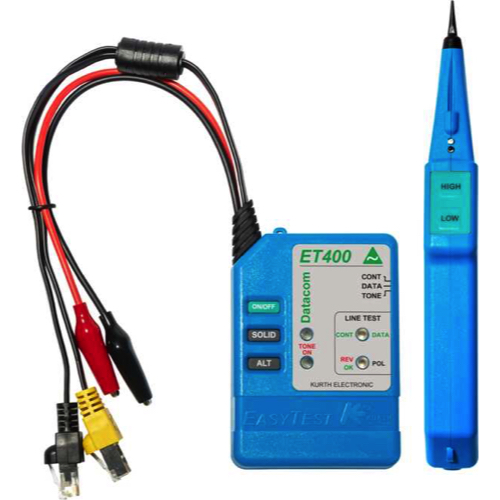

Housing: Heavy duty housing made from ABS, silicon rubber push buttons
Test Leads: Two 25 cm durable test leads with solid alligator clips, one test lead with RJ-11 and one with RJ-45 modular plug
Search frequencies:
6 frequencies selectable, accuracy < ± 1 % (Quartz)
SOLID: 1000, 2600, 577.5 Hz
ALT:1000/800, 2600/1900, 577.5 Hz intermittent
External voltage protection: Up to 120 V AC in any mode
Specifications
-Continuity test with LED
-Resistance test
-Network port test with port finder function
-Low battery indication by flashing LED
-Auto shut-off after 45 min.
-Auto shut-off override incl. indication through flashing LED
-Device on indication through LED
-Indication of ALTernating frequency by flashing LED
-Indication of SOLID frequency by steady LED
-Test leads protected by rubber-strain relief
-Separate battery compartment
Reach: Trace cable length up to 15 km / 9.3 mi (no load)
Transmitting power:
High power output with 9 V battery:
13.0 V PP no load
7 dBm at 600 Ohm
6 dBm at 100 Ohm
0 dBmat 50 Ohm
Tone on shorted pair up to 250 m
Power supply: 9 V battery; approx. 100 hours battery life (depends on type and state of battery model
Dimensions/Weight: 68 × 96 × 25 mm / 150 g without battery
P410
Filter signal LED
Torch light function
Solid carbon fiber tip
3.5 mm earphone jack
Separate battery compartment
Trace distance to cable/wire up to 60 cm / 23.6″
9 V battery; approx. 100 hours battery life (depends on type and state of battery model
220 × 40/34 × 25 mm / 80 g without battery
