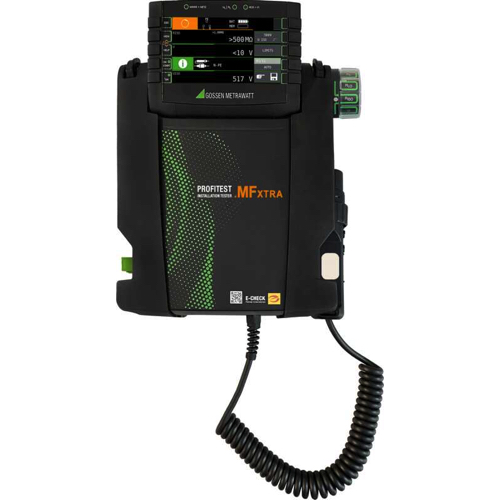

Gossen Metrawatt PROFiTEST MF XTRA Testing Of Electric Installations And Systems (65 ~ 500 V; 15.4 Hz ~ 420 Hz)

System voltage range: 65 V to 500 V AC

Frequency measurement range: 15.4 Hz to 420 Hz

Loop and line impedance measurement: With DC bias magnetization for high measurement accuracy

Earth loop resistance measurement: RELOOP function

Insulation resistance measurement: 1 kΩ to 500 MΩ

Test voltage: 50 V, 100 V, 250 V, 500 V, 1000 V (nominal, variable, or ramp test voltage)

Protective conductor resistance measurement (RLO): 0.00 Ω to 199 Ω

Measurement method: 4-wire measuring method with automatic polarity reversal

Earth resistance measurement: Mains-powered and battery-powered operation

Selective earth resistance measurement: Supported

RCD and RCCB testing capability: Supports selective S-type, SRCDs, PRCDs, Schukomat, Sidos, and types G/R, AC, A, A-EV, F, F-EV, B, B+, and B-MI

RDC-DD and RCMB testing: Compliant with IEC 62955 and DIN EN 62752

Insulation monitoring device (IMD) testing: Supported

Residual current monitoring device (RCM) testing: Supported

Leakage current measurement: With PRO-AB adapter

Charging station testing capability: Compliant with IEC 61851-1 when used with METRALINE PRO-TYP EM adapter

Residual voltage measurement: Compliant with EN 60204-1

Test automation capability: Preconfigured and programmable automatic test sequences

Memory capacity: Up to 50,000 measurement records

Display: Context-sensitive color graphic display

Interface: USB port with USB push-print function

Software compatibility: IZYTRONIQ software for data storage and report generation

Safety category: CAT III 600 V / CAT IV 300 V

Standards compliance: IEC 60364-6, IEC 61557, IEC 61010, IEC 61851-1, EN 60204-1
