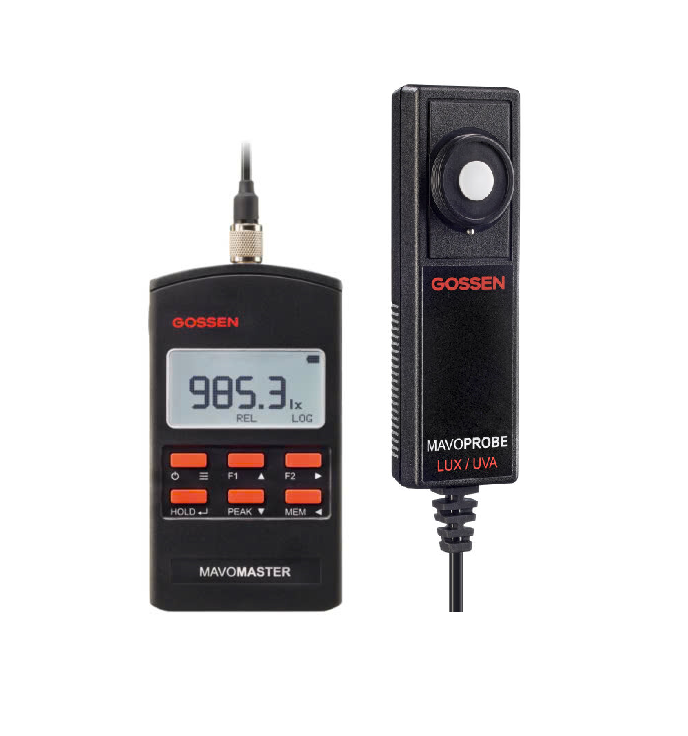

MAVOMASTER
Type: Illuminance measuring probe
Article number: M525G
MEASURING FUNCTIONS
Sampling rate: 2/s
Probe connector cable: Probe connection, Binder series 711 plug, 5-pin
Compliance with the Standards: DIN 5032-7 / DIN EN 13032-1 appendix B / ISO CIE 19476
OPERATION
Display: FSTN graphic display, 128×64, monochrome, 50 mm x 25 mm
Background illumination: Selectable mode and adjustable brightness
Controls: 6 keys, fluorescent lettering
Measured value memory: 8 GB
Interface: USB 2.0. micro-B socket
Software: EXCEL TEMPLATES
POWER SUPPLY
Batteries: 1.5V mignon, type AA
Automatic battery monitoring: ✓
Automatic shutdown: Off, 10 s, 30 s, 1 min, 2 min, 5 min
Battery service life: Up to 16 h continous operation with alkaline manganese battery
Power supply via USB: ✓
MISCELLANEOUS
Operating temperature: -10 °C to +50 °C
Dimensions: 65 mm x 120 mm x 19 mm
Weight: 100 g including battery
Scope of delivery: Operating instructions, battery, USB cable
MAVOPROBE LUX / UVA
Type: Measuring probe for illuminance and irradiance
Classification: Klasse B – DIN 5032-7
Article number: M526G
MEASURING FUNCTIONS:
Illuminance: 0.001 lx … 199 990 lx / 0.001 fc … 19 999 fc
Luminance: 0.01 cd/m² … 1 999 900 cd/m² / 0.001 fL … 199 990 fL with optional luminance attachment, not classified
Irradiance – UV-A 365 nm: 0.01 μW/cm² … 199 990 μW/cm²
Sampling rate: 2/s
Measuring sensor: Silicon photodiode with V(λ) filter Silicon photodiode with UV-A filter per DIN EN ISO 3059
Probe with ¼“ tripod thread: ✓
Probe connector cable: 1.5 m, plug-in, Binder series 711 plug, 5-pin
Compliance with the Standards: DIN 5032-7 class B / DIN EN 13032-1 appendix B / ISO CIE 19476 / DIN EN ISO 3059 / ASTM E2297-15
Characteristic value – V(λ) matching (f1‘), typical: < 3 %
Characteristic value – cos-like rating f2, typical f2: < 2 %
Temperature dependence: < 0.1%, temperature compensated
Accuracy: ± 2.5 % rdg ± 1 digit, ± 10 % rdg ± 1 digit (UV-A 365 nm)
OPERATION:
Interface: USB 2.0 with adapter cable
Software: EXCEL TEMPLATES
POWER SUPPLY:
Power supply via USB: ✓
MISCELLANEOUS:
Operating temperature: -10 °C to +50 °C
Dimensions: 33 mm x 115 mm x 27 mm
Weight: 115 g
Scope of delivery: Operating instructions, final test certificate
