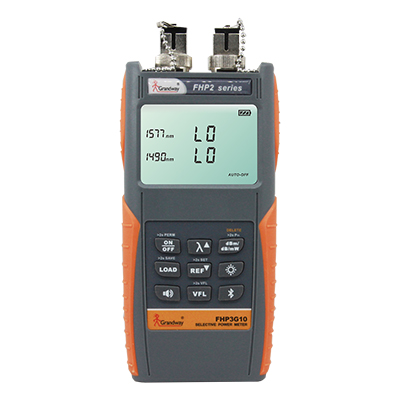

Optical Port: OPM: SC/UPC or SC/APC; VFL: SC/UPC
Calibrated Wavelength: 1490nm / 1550nm / 1577nm
Test Range:
1490nm/1577nm: –40 ~ +10dBm
1550nm: –40 ~ +20dBm
Test Accuracy: ±0.5dB
Resolution: 0.01dB
Display Unit: dBm / dB / mW
Isolation: 1490nm >35dB; 1550nm >35dB; 1577nm >35dB
VFL: 10mW, CW / 2Hz
Memory Capacity: 999 groups
Threshold Setting: 10 groups (Pre-set by PC software)
Communication Port: Type-C USB port
Bluetooth: Optional
Power Supply: 2*2500mAh Ni-MH AA battery
External Power Supply: 5V/1A; AC/DC adapter
Working Temp: –10℃ ~ +50℃
Storage Temp: –20℃ ~ +70℃
Dimension: 160L × 76W × 45H (mm)
Weight: 249g
