Input voltage: DC 30V
Rated power: 45W
Specification:
Torsion range:
kgf.cm: 2-16
N.m: 0.196-1.57
Lbf.in: 1.734-13.87
Torque accuracy (%): ±5
Torque adjustment: stepless
No-load speed(rpm): 2000
Applicable screw diameter(mm):
Mechanical tooth(mm): 2.3-3.5
Self-tapping teeth(mm): 2.0-3.0
Suitable for screwdriver head: ø5
Product Details

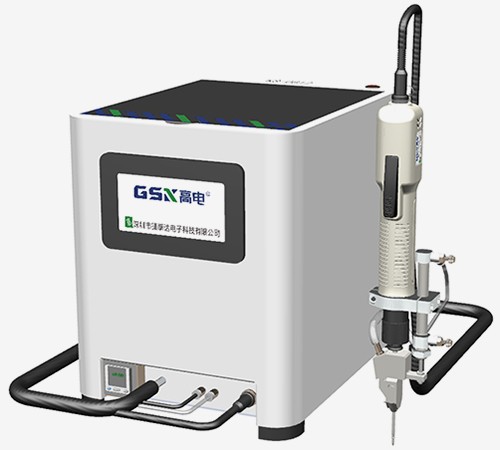

1. This product is a blow (hand-held) screw feeder. It is a hand-held locking device that automatically delivers screws through the reciprocating action of the feeder, cylinder, clamp and other components to improve production efficiency.
2. Suitable for less interference around the lock screw and in a more open environment.
3. Can greatly improve production efficiency
After the screw lock is completed, the release of the starting press plate will immediately automatically add screws to the front end of the nozzle, greatly reducing the manual lock, manual suction screw, screw or screw suction action, generally can increase the production efficiency of 2 times.
4. The screw machine is the first to use touch LCD panel, friendly human-machine interface, through the panel can be personalized adjustment of relevant parameters. When there is an anomaly, the LCD screen will appear the corresponding prompt information, the problem is clearer, the top of the shell is opened, and the all-inclusive design is used around the shell, which is faster to eliminate the anomaly. In addition, the digital barometer is used, the air pressure regulation is more fine and more accurate, and the cylinder action is accurate.
5. This product is generally a fixed product, the order needs to provide about 200 screws adjustment machine test, such as standard type can not meet the actual requirements, can be customized according to demand.
