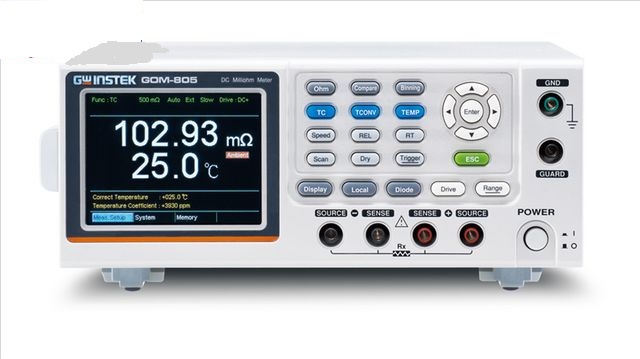

GWINSTEK GOM-805 DC Milli-Ohm Meter

Specification:

MODEL: GOM-805

DISPLAY: 50,000 counts

SAMPLING RATE: Slow: 10 readings / s

Fast: 60 readings / s

RESISTANCE MEASUREMENT:

Range / Test current (fixed): 50mΩ /1A; 500mΩ / 100mA; 5Ω / 100mA; 50Ω / 10mA; 500Ω / 1mA; 5kΩ / 100µA; 50kΩ / 100µA; 500kΩ / 10µA; 5MΩ / 1µA

Accuracy: 50mΩ : ± (0.1% of reading + 0.02% of range)

500mΩ ~ 50Ω : ± (0.05% of reading + 0.02% of range)

500Ω ~ 500kΩ : ± (0.05% of reading + 0.008% of range)

5MΩ : ± (0.2% of reading + 0.008% of range)

Resolution: 1µΩ, 10µΩ, 100µΩ, 1mΩ, 10mΩ, 100mΩ, 1Ω, 10Ω, 100Ω

TEMPERATURE:

Range: -50˚C ~399.9˚C

Accuracy: -10˚C ~40˚C : 0.3% ± 0.5˚C ; Other : 0.3% ± 1.0˚C

Resolution: 0.1˚C

DRY CIRCUIT: Open circuit less than 20mV;

For 500mΩ, 5Ω, 50Ω range only

DRIVE MODE: DC+/DC-, Pulsed, PWM, Zero

OTHER FUNCTIONS: Trigger – Internal, Manual, External、Math – ABS, REL, %, TC、Hi / Lo, Average 2 ~ 10 times、Measured delay、Go / No-Go、TC for Transformer, Diode、Continuity beeper、Sorting (only for GOM-805)

INTERFACE: USB, RS-232C, HANDLER/SCAN/EXT I/O, GPIB

Accessories: Quick Start Guide x 1, Power cord x 1, Test lead GTL-308 x 1, CD x1(complete user manual)
