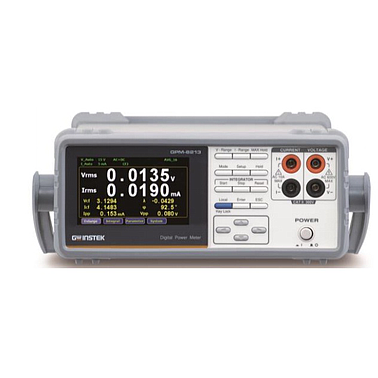

GW INSTEK GPM-8213 Digital Power Meter AC/DC

Display 4" TFT LCD
Wiring/ Mode 1P2W / AC, DC
Measurable
Parameters
(symbol)

Vdc/ Vrms/ V+pk/ V-pk
Idc/ Irms/ I+pk/ I-pk
P/ P+pk/ P-pk/ VA/ VAR
CFV/ CFI/ PF/ VHz / IHz
DEG/ THDV/ THDI
Integrated Function W-h / A-h
(WP/ WP+/ WP-/ q/ q+/ q-)
Sample Rate 96kHz
Input Resistance A : 5mΩ/500mΩ
V : 2.4MΩ
Input Terminal 4-wire, isolated
Max input V,A 600Vrms, 20Arms
Volt Range CF≤3 : 15.000~600.0V (6 ranges)
CF≤6 : 7.500 ~ 300.0V (6 ranges)
Volt Accuracy
(Best)

±0.1% of reading
±0.1% of range
Power Range 75.000mW ~ 12.000kW
Freq Range DC,45Hz~6kHz
Interface RS232+ USB+ LAN (Option: GPIB)
