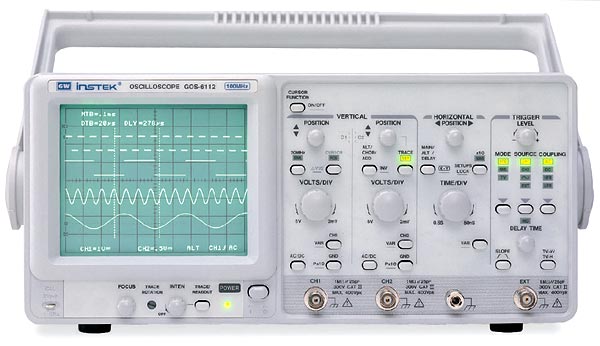

The screendisplaywith8x106inchsquares
Sensitivity:2mV~5V/DIV±3%,
Bandwidth:100MHz
Input:AC,DC,GND,Max400V
Mode:CH1,CH2,DUAL,ADD,CH2INV
Power supply:AC100V/120V/220V/230V±10%,50/60Hz
Manufacturer:GwInstek-Taiwan
| CRT | |||||||||||||||||
| Type | 6-inch rectangular type with internal graticule; 0%, 10%, 90% and 100% markers. 8 x 10 div (1 div = 1 cm) |
||||||||||||||||
| Accelerating Potential | 16kV approx. (GOS-6103/GOS-6103C), 12 kV approx.(GOS-6112) | ||||||||||||||||
| Illumination | Continuously adjustable (GOS-6103/GOS-6103C) | ||||||||||||||||
| Z-axis input | Coupling : DC Sensitivity: 5V or more Maximum input voltage : 30V (DC + AC peak) at 1kHz or less Bandwidth : DC ~ 5 MHz |
||||||||||||||||
| VERTICAL SYSTEM | |||||||||||||||||
| Sensitivity | 2mV~5V/div, 11 step in 1-2-5 sequence | ||||||||||||||||
| Sensitivity Accuracy | ≦3% (5div at the center of display) | ||||||||||||||||
| Vernier Vertical Sensitivity | Continuously variable to 1/2.5 or less of panel-indicate value | ||||||||||||||||
| Bandwidth(-3dB) | DC~100MHz (2mV/div:DC~20MHz) | ||||||||||||||||
| Rise Time | 3.5ns (2mV/div:17.5ns) | ||||||||||||||||
| Signal Delay | Leading edge can be monitored | ||||||||||||||||
| Max. Input Voltage | 400V(DC+AC peak) at 1kHz or less | ||||||||||||||||
| Input Coupling | AC, DC, GND | ||||||||||||||||
| Input Impedance | 1MΩ±2% // approx. 25pF | ||||||||||||||||
| Vertical Mode | CH1,CH2,DUAL(CHOP/ALT), ADD, CH2 INV. | ||||||||||||||||
| Bandwidth Limited | 20MHz | ||||||||||||||||
| Common-Mode Rejection Ratio | 50:1 or better at 50kHz | ||||||||||||||||
| Dynamic Range | 8 div at 60MHz 5 div at 100MHz |
||||||||||||||||
| HORIZONTAL SYSTEM | |||||||||||||||||
| Horizontal Modes | MAIN(A), ALT, DELAY(B) | ||||||||||||||||
| A(main) Sweep Time | 50ns~0.5s/div, continuously variable (UNCAL) | ||||||||||||||||
| B(delay) Sweep Time | 50ns~50ms/div | ||||||||||||||||
| Accuracy | ±3% (±5% at x 10 MAG) | ||||||||||||||||
| Sweep Magnification | x 10 (maximum sweep time 5nS/div) | ||||||||||||||||
| Hold Off Time | Variable | ||||||||||||||||
| Delay Time | 1μs~5s | ||||||||||||||||
| Delay Jitter | Better than 1:20000 | ||||||||||||||||
| Alternate Separation | Variable | ||||||||||||||||
| TRIGGER | |||||||||||||||||
| Trigger Modes | AUTO, NORM,TV | ||||||||||||||||
| Trigger Source | CH1, CH2, LINE, EXT | ||||||||||||||||
| Trigger Coupling | AC, DC, HFR, LFR | ||||||||||||||||
| Trigger Slope | "+" or "-" polarity or TVsync polarity | ||||||||||||||||
| Trigger Sensitivity |
|
||||||||||||||||
| TV sync | TV-V, TV-H | ||||||||||||||||
| Max. External Input Voltage | 400V (DC+AC peak) at 1kHz | ||||||||||||||||
| External Input Impedance | 1MΩ±5% // approx.25pF | ||||||||||||||||
| X-Y OPERATION | |||||||||||||||||
| Mode |
X-axis: selectable CH1, CH2, EXT |
||||||||||||||||
| Sensitivity Accuracy | 2mV~5V/div±3% ; EXT : 0.1V/div±5% | ||||||||||||||||
| X-axis Bandwidth | DC~500kHz(-3dB) | ||||||||||||||||
| Phase Error | 3° or less from DC~50kHz | ||||||||||||||||
| OUTPUT SIGNAL | |||||||||||||||||
| CH1 Signal Output | Voltage: approx. 25mV/div into 50Ω Frequency response : DC ~ 10MHz |
||||||||||||||||
| Calibrator Output | 1kHz Square wave, 2Vpp±2% | ||||||||||||||||
| CURSOR READOUT FUNCTION | |||||||||||||||||
| Cursor Measurement Function | ΔV, ΔV%, ΔVdB, ΔT, 1/ ΔT, ΔT%, Δθ | ||||||||||||||||
| Cursor Resolution | 1/100 DIV | ||||||||||||||||
| Effective Cursor Range | Vertical: ±3div ; Horizontal: ±4 div | ||||||||||||||||
| Panel Setting Display | Vertical: V/div(CH1,CH2),UNCAL,ALT/CHOP/ADD,INV, probe factor,AC/DC/GND Horizontal: s/div(MTB, DTB), UNCAL, x 10MAG, delay time , HO Trigger: source, coupling, slope, level, TV-V, TV-H Others: X-Y lock, save/recall MEM 0-9 (GOS-6103/GOS-6103C) |
||||||||||||||||
| AUTO MEASUREMENT FUNCTION (GOS-6103C) | |||||||||||||||||
| Parameter Function | FREQ, PERIOD, ±WIDTH, ±DUTY (+ or - polarity selected by trigger slope) | ||||||||||||||||
| Display Digits | Max. 6-digits, decimal | ||||||||||||||||
| Frequency Range | 50Hz ~ 100MHz | ||||||||||||||||
| Accuracy | 1kHz ~ 100MHz : 0.01% ; 50Hz ~ 1kHz : 0.05% | ||||||||||||||||
| Measuring Sensitivity | > 2 div (Measuring source selected from CH1 and CH2 as synchronous signal sources) | ||||||||||||||||
| SPECIAL FUNCTION | |||||||||||||||||
| TIME/DIV Auto Range | Provided (GOS-6103/GOS-6103C) | ||||||||||||||||
| Panel Setting Save & Recall | 10 sets (GOS-6103/GOS-6103C) | ||||||||||||||||
| Panel Setups Lock | Provided | ||||||||||||||||
| POWER SOURCE | |||||||||||||||||
| AC 100V/ 120V/ 230V±10% , 50/60Hz | |||||||||||||||||
| DIMENSIONS & WEIGHT | |||||||||||||||||
| 310(W) x 150(H) x 455(D) mm; Approx. 9kg | |||||||||||||||||
