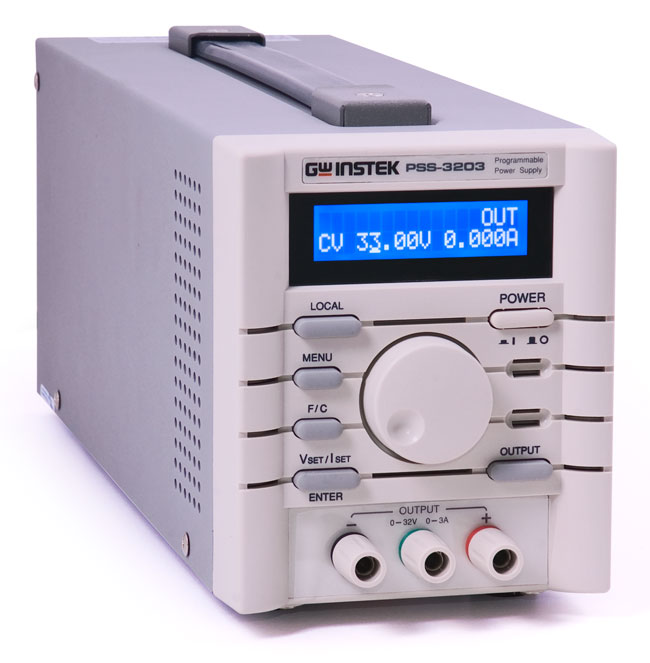

PSS-3203 | ||
| OUTPUT | ||
| Voltage | 0~32V | |
| Current | 0~3A | |
| OVP | 0~33V | |
| LOAD REGULATION | ||
| Voltage | < 3mV ( < 5mV rating current > 3A) | |
| Current | < 3mA ( < 5mA rating current > 3A ) | |
| LINE REGULATION | ||
| Voltage | < 3mV | |
| Current | < 3mA | |
| RESOLUTION | ||
| Voltage | 10mV | |
| Current | 1mA ( 2mA, rating current >3A ) | |
| OVP | 10mV | |
| PROGRAM ACCURACY (25±5° C) | ||
| Voltage | < 0.05% + 20mV | |
| Current | < 0.1% + 5mA (10mA, rating current> 3A) | |
| OVP | < 0.05% + 20mV | |
| RIPPLE & NOISE (20Hz ~ 20MHz) | ||
| Voltage | Ripple≦1mVrms / 3mVp-p Noise≦2mVrms / 30mVp-p | |
| Current | < 3mArms ( < 5mArms, rating current > 3A ) | |
| TEMPERATURE COEFFICIENT (0~40° C ) | ||
| Voltage | < 100ppm + 3mV | |
| Current | < 100ppm + 3mA | |
| READBACK RESOLUTION | ||
| Voltage | 10mV | |
| Current | 1mA ( 2mA, rating current > 3A ) | |
| READBACK ACCURACY (25±5° C) | ||
| Voltage | < 0.05% + 10mV | |
| Current | < 0.1% + 5mA (10mA rating current > 3A) | |
| READBACK TEMPERATURE COEFFICIENT | ||
| Voltage | < 100ppm + 10mV | |
| Current | < 100ppm + 5mA ( + 10mA rating current > 3A ) | |
| RESPONSE TIME | ||
| Voltage Up 10%~90% | < 100mS | |
| Voltage Down 90%~10% | < 100mS ( ≧10% rating load ) | |
| DRIFT | ||
| Voltage | < 100ppm + 10mV | |
| Current | < 150ppm + 10mA | |
| INTERFACE | ||
| Standard : RS-232C Option : GPIB (IEEE488.2) | ||
| POWER SOURCE | ||
| AC100V/120V/220V±10%, 230V (+10%~-6%), 50/60Hz | ||
| ACCESSORIES | ||
| User manual x 1 Power cord x 1 Test lead GTL-105 x 1 [or European Test Lead GTL-203 x 1] | ||
| DIMENSIONS & WEIGHT | ||
| 108(W) x 140(H) x 315(D)mm Approx. 4.8kg | ||
