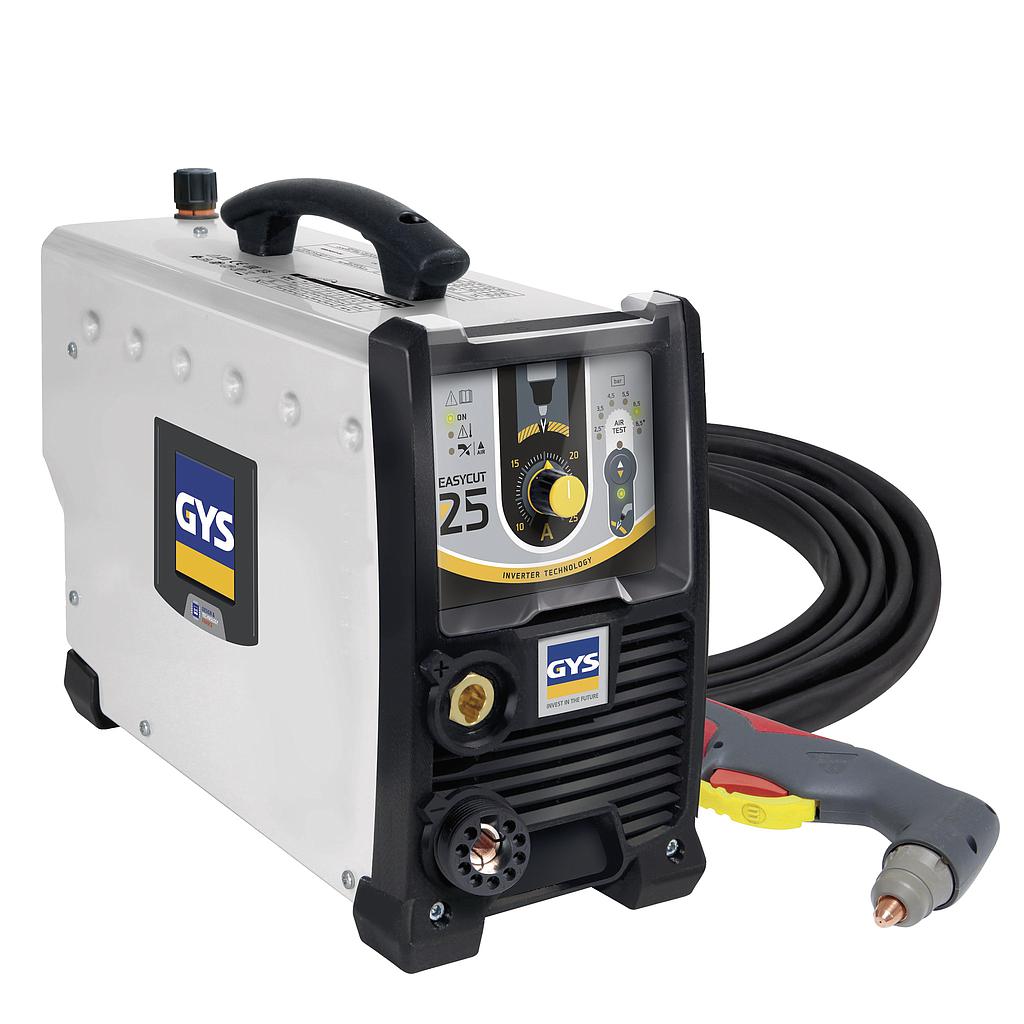

GYS EASYCUT 25 Plasma Cutter (1ph; 230V; 10-25A)

Ultra compact (7.8 kg), the EASYCUT 25 is a plasma cutter with a HF-free starting voltage, perfect for cutting all types of metal up to 8 mm thick. With a power output of 25 A, it excels in precision cutting at low intensity. Ideal for use in workshop or car body shop, the EASYCUT 25 has great portability and cutting performance.

EFFICIENT

■ Inverter technology guarantees quality cutting on all types of steels (soft, stainless, hardened, HLE), aluminium, copper, etc.

■ Quick and easy installation of consumables

ERGONOMIC TORCH

■ Effective cutting: air cooled torch body for a high arc stability and duty cycle.

■ Ergonomic handle for comfort and ease.

■ Designed to be shock and heat resistant.

■ Quick torch connection/disconnection, without tools.

SIMPLE TO USE

■ Intuitive control panel.

■ Manual adjustment of the air pressure (2.5 < 6.5 bar) with a bargraph on the front panel.

■ Automatic torch detection.

■ HF-free ignition to prevent disturbances that could damage nearby electronic equipment.

SAFE

Built-in protections:

- Protected against overvoltage and overcurrent.

- Indication of insufficient air pressure or torch detection.

ERGONOMIC

■ Reinforced structure with isolated non slip rubber pads.

■ HMI protective cover.

■ The torch and earth clamp can be disconnected.

■ Compact, lightweight and portable.

Specifications

Power supply: 230 V, 1 ph, 50/60 Hz

Fuse: 13 A

Normal current output: 10-25 A

Duty cycle (environment temp. 40°C)

Imax 25 A / 90 V

@ 60% 15 A / 86 V

@ 100% 10 A / 84 V

No load voltage: 420 V

Recommended air flow rate: 115 L/min

Recommended air pressure: 2.5 > 6.5 bar

Protection class: IP 21

Dimensions (L x w x h): 42 x 15 x 30 cm

Weight; 7.8 kg

Standard IEC 60974-1/10 A

Equipped torch: TPT 25 - 4 m

Included accessories: Torch TOPARC TPT 25, 4 m + Earth cable 2 m
