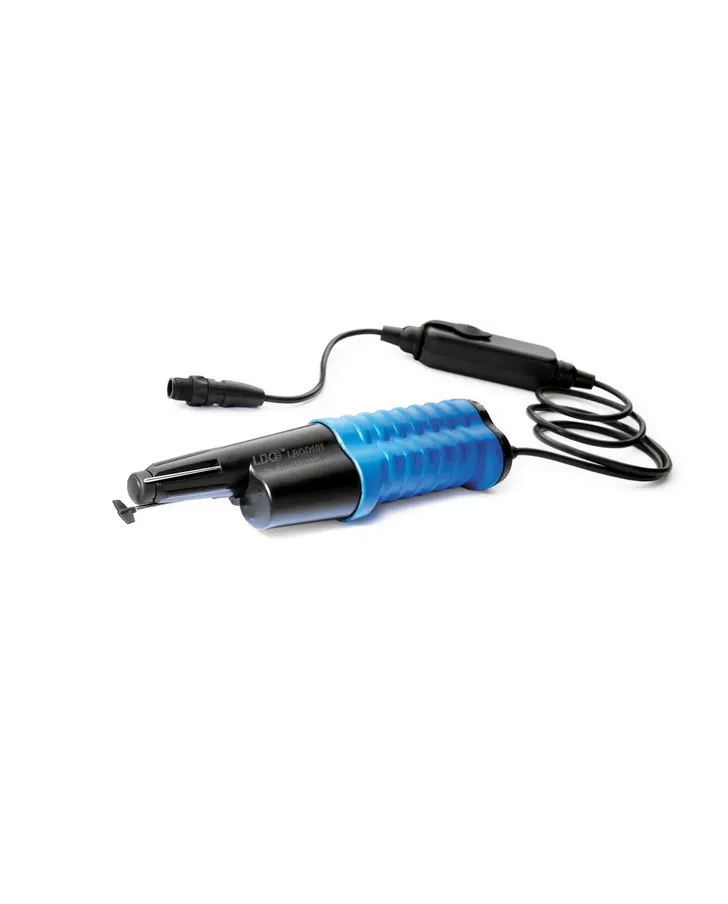

HACH LBOD101 Optical Dissolved Oxygen (LDO) Sensor (0.05 – 20.0 mg/L)

Accuracy: ±0.05 mg/L from 0 to 10 mg/L|±0.1 mg/L for greater than 10 mg/L

Cable Length: 1.8 m (5.91 ft)

Dimensions (D x L): 15.875 mm x 215 mm (8.46 in.)

Electrode Type: Luminescent Dissolved Oxygen

Length: 215 mm (8.46 in.)

Method Type: Laboratory: Luminescent Dissolved Oxygen

Parameter: BOD

Pressure accuracy: ±3 mbar (0.3 kPa)

Pressure Resolution: 5 mbar (0.5 kPa)

Probe Type: Standard

Accessories Included: None

Range:

0.05 - 20.0 mg/L

1 - 200% saturation

Resolution: 0.01/0.1

Sample depth: 10 mm (0.394 in.)

Saturation accuracy: ±0.59% of reading

Saturation resolution: 0.1

Sensor Cable: 1.8 m

Sensor material: Polycarbonate / ABS

Sensor Type: Lumiphore

Special Features: Integrated stirring system.

Temperature Accuracy: ±0.3 °C (±0.54 °F)

Temperature Range: 0 - 50 °C (32 - 122 °F)

Temperature Resolution: 0.1 °C (0.18 °F)

Test requirements:

Parameter Needed: BOD

Minimum Sample Depth (mm): 10

Thermistor: ATC

Weight: 0.22 kg
