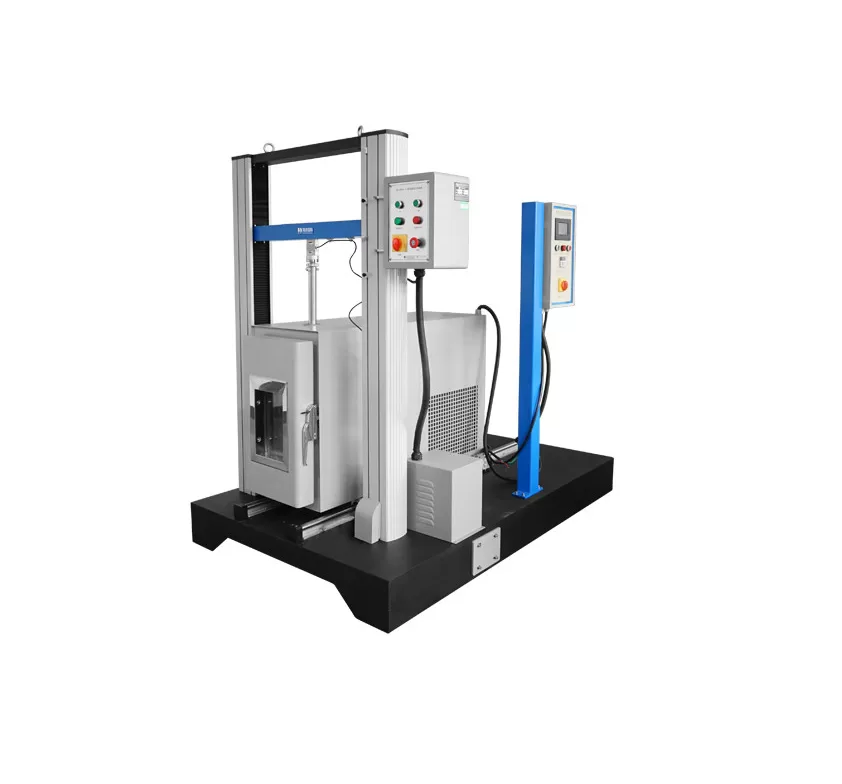

Tensile strength tester
Capacity (optional): 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000kg
Unit (Switchable): G, KG, N, KN, LB
Load Resolution: 1/100,000
Load Accuracy: < ± 0.5%
Stroke (exclude the grips): 400 500 600 mm (can be adjusted higher by requirements)
Test speed: 0.1~500 mm/min Selectable
Effective Width: 400 mm
Operation Mode: Controlled by PC
Weight (exclude the grips): 130 Kg
Display: PC (can be programmed any of the customer's data )
Motor: AC Servo Motor
Dimension(L×W×H)-Main Unit: 1200×600×1500cm
Dimension of the testing space: 400×400×700mm
Testing width: 40cm ( can be widened by requirements)
Power: 1#, 220V, 10A
Rotation method: high precision ball screw rod
Fixture: can be customized stretching and compressing fixture
Temperature control chamber
Temperature range: -40°C ~150°C
Control method: P.I.D Automatic calculation
Humidity range: 20%~98%
Tem & Hum accuracy: ±0.5°C, ±2.5% RH
Temp& Humid regularity: ±2°C, ±3% RH
Compressor: France Tecumseh
Cooling Speed: 1 °C/ min
Counter: LED,0~9999.99
Inner material: SUS 304 Stainless steel
Inner Chamber size: (L×W×H)40×40×70cm (can custom)
