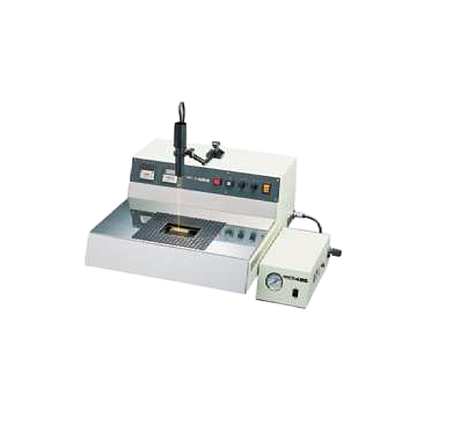

HAKKO 485 Soldering System (100V)

Power consumption: 850 W

Temperature Range: Room temperature to 300°C

Molten solder capacity: 10kg

Dimensions:500 (W) x 245 (H) x 550 (D) mm

Weight: 35 kg

Air unit:

Air pressure: 196 to 686 kPa (2 to 7 kgf/cm²)

Dimensions: 150(W)×100(H)×300(D)mm

Weight: 3.5kg

Packing list:

Main unit, Air unit, Lamp (10 W [6 V]), Horizontal gauge, Spatula, IC tweezers,

Waste collector, Positioning board, Foot switch, Locator Light, Anti-oxidizer, 42-pin nozzle,

28-pin nozzel, 18/20-pin nozzel, 14/16-pin nozzel, 42-pin air hood, 28-pin air hood,

18/20-pin air hood, 14/16-pin air hood, Instruction manual

Datasheet
