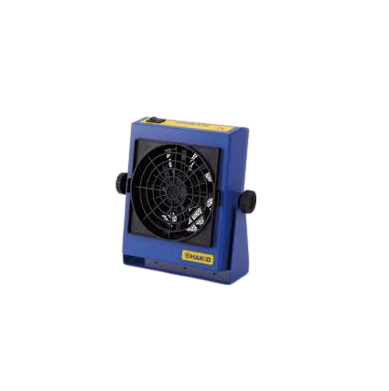

HAKKO FE-510 W / FLAT 2 Pin Plug (W / Adapter) Static Eliminator

AC adapter output/Capacity: DC24V 10VA

Discharge method: High frequency AC method

High voltage output: AC2,000V approx.

Ion balance: ±10V or less

Static elimination time:

Straight louver: approx.1.5 seconds

Wide-angle louver: approx.2.5 seconds

High voltage abnormality output (ALARM)MOS FET relay non-voltage contact output

Maximum current: 100mA

Applied voltage: DC30V or less

Cleaning check output (C.C): MOS FET relay non-voltage contact output

Maximum current : 100mA

Applied voltage : DC30V or less

Air flow: 1.5 to 3.0m3/min.

Air flow out angle: Vertically 360ºvariable (every 10º)

Quantity of produced ozone: 0.04ppm or less

Operation environment: Ambient temperature/humidity range : 0 to 40ºC, 15 to 65% (without condensation)

Material for discharge needles: Tungsten

Dimentions: 150(W)×182(H)×50(D)mm (without stand)

Weight: Approx. 0.79kg

・AC Adapter

AC adapter output/Capacity: DC24V 1A

Dimentions: 34(W)×72(H)×51(D)mm

Weight: Approx. 100g

Packing List: Static eliminator unit, wide-angle/straight louver, cleaning brush, filter, AC adapter, output signal connection leads (set of 3), and instruction manual
