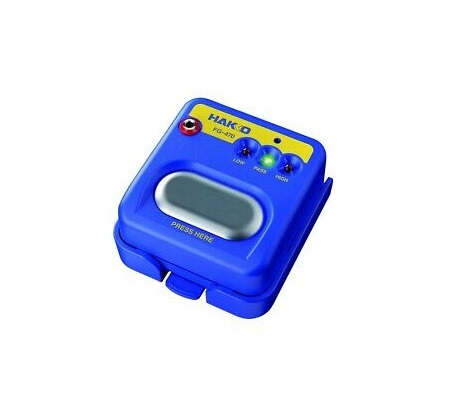

HAKKO FG-470-06 Tester for wrist strap

Power supply: 006P 9V dry battery (alkaline cell recommended)

Indication: LOW R<800kΩ

Indication: PASS 800kΩ≤R≤9MΩ

Indication: HIGH R>9MΩ

Battery life: Approximately 50,000times (9V alkaline)

Grounding wire: 1m

Operation environment: Ambient temperature/humidity range : 0 to 40ºC, max.80% RH (without condensation)

Dimensions:

85(W)×44(H)×90(D)mm

92(W)×48(H)×97(D)mm (with mounting holder)

Weight:

120g

160g (with mounting holder)

Packing List: Unit, 006P 9V dry battery(for trial), Grounding wire, Banana plug, Mounting holder, Wood screw (qty 4), Instruction manual
