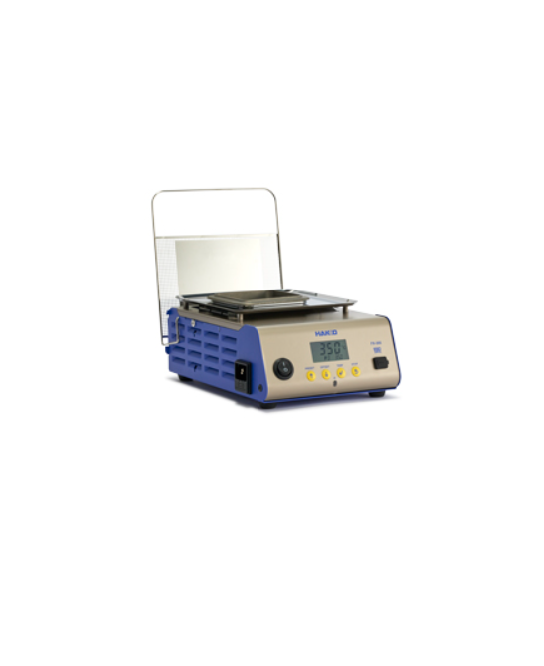

HAKKO FX305-06 Soldering Pot

Power consumption: 550 W (100 V), 680 W (110 V), 575 W (120 V), 580 W (220 V), 640 W (230 V), 700 W (240 V)

Dimensions (w/o cord)

Main unit only:162 (W) × 100 (H) × 239 (D) mm

With solder pot cover attached: 162 (W) × 123 (H) × 239 (D) mm

Weight (w/o cord) 2.5 kg

Pot

Pre-equipped pot: 75 x 75 square, durable type

Temperature range

75 × 75 square: 50 to 500ºC

Solder pot dimensions (inside)

75 × 75 square: 175 (W) × 42.5 (H) × 75 (D) mm

Molten solder capacity

75 × 75 square: 1.9 kg

Notes

ESD Safe ●

Solder pot cover ●

Stop mode ●

Solder leak detection function ●

Fixing support: Option

Display Monochromatic segment LCD Seven-segment LED: ―

Interface USB Mini-B: ―

Software: ●

Auto offset function: ●

Temperature probe fxing: Option

Timer function: ●

Durable type: ●

Setting of solder composition to be used:Sn-Pb / Sn-Ag-Cu / Sn-Cu / Sn / Sn-Bi
