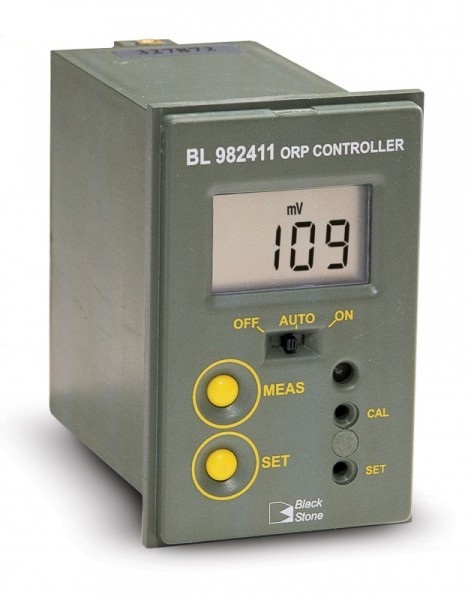

HANNA BL982411-0 ORP Mini Controller, range: 0 to 1000 mV, 12VDC

Specifications
Range 0 to 1000 mV
Resolution 1 mV
Accuracy (@25°C/77°F) ±5 mV
Calibration manual, with CAL trimmer
Dosing Relay maximum 2A (fuse protected), 250 Vac, 30 VDC
Dosing Selection reducing or oxidizing, selectable on the back panel
contact open=reductant dosage=relay ON if measure > setpoint
contact closed=oxidant dosage=relay ON if measure < setpoint
Setpoint adjustable, from 0 to 1000 mV
Overtime adjustable, typically from 5 to approximately 30 minutes
Input Impedance 10¹² Ohm
Power Supply BL982411-0: 12 VDC adapter (included);
BL982411-1: 115/230 VAC; 50/60Hz
Dimensions 83 x 53 x 99 mm (3.3 x 2.1 x 3.9’’)
Weight BL982411-0: 200 g (7.1 oz.);
BL982411-1: 300 g (10.6 oz.)
Ordering Information BL982411-0 (12 VDC) and BL982411-1 (115V) are supplied with mounting brackets, transparent cover and instruction manua
