-Power Supply: 230 VAC ±10%; 50/60 Hz; 15 VA
- Range:
+Conductivity: 0.0 to 199.9 µS/cm; 0 to 1999 µS/cm 0.00 to 19.99 mS/cm; 0.0 to 199.9 mS/cm
+ TDS: 0.0 to 100.0 mg/L (ppm); 0 to 1000 mg/L (ppm) 0.00 to 10.00 g/L (ppt); 0.0 to 100.0 g/L (ppt)
+Temperature: -10.0 to 100.0°C
- Resolution:
+Conductivity: 0.1 µS; 1 µS; 0.01 mS; 0.1 mS
+ TDS: 0.1 ppm; 1 ppm; 0.01 g/L (ppt); 0.1 g/L (ppt)
+Temperature: 0.1°C
-Accuracy @ 20°C:
+Conductivity/TDS: ±0.5% f.s.
+Temperature: ±1°C (outside)
-EC Calibration: automatic or manual at 1 point
- Temperature Compensation: automatic or manual, -10 to 100°C with adjustable temperature coefficient from 0.00 to 10.00%/°C
- TDS Conversion Factor: adjustable from 0.00 to 1.00
- Outputs:digital: RS485 bi-directional opto-isolated
- Analog Input: 4-20 mA
-Set Point Relay: two contact outputs SPDT 5A-250 VAC, 5A-30 VDC (resistive load), fuse protected (2A, 250V fast fuse)
-Alarm Relay: contact output SPDT 5A-250 VAC, 5A-30 VDC (resistive load), fuse protected (2A, 250V fast fuse)
-Over Current Protection: 400 mA 250V fast fuse
- Environment: 0 to 50°C (32 to 122°F); RH max 95% non-condensing
- Dimensions: panel cutout: 140 x 140 mm, instrument: 144 x 144 x 170 mm
- Weight: 1.6 kg (3.5 lb.)

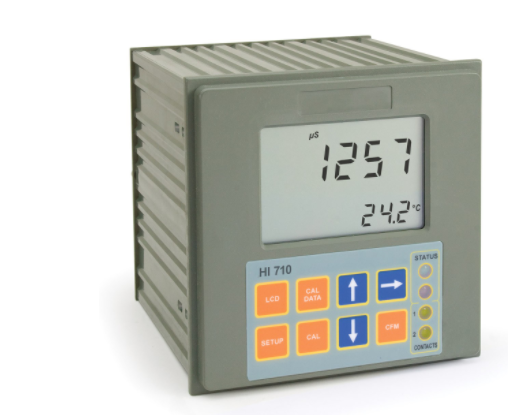

- HANNA HI 710222-2 is provided with dual set point, ON/OFF and PID controls and is supplied with mounting brackets and instructions
