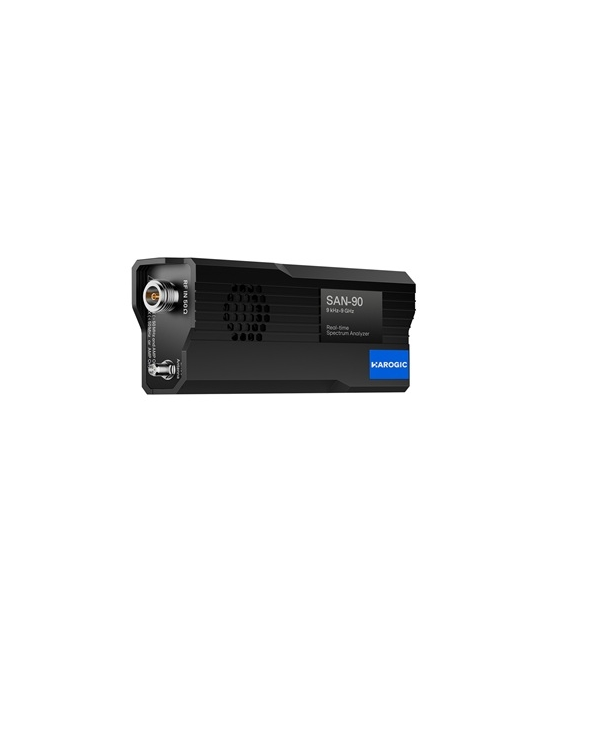

HAROGIC SAN-90 Real-Time Spectrum Analyzer (9 kHz~9 GHz, Option 5, Option 50)

Name: HAROGIC SAN-90 Real-Time Spectrum Analyzer (9 kHz~9 GHz, Option 5, Option 50)
Brand: HAROGIC

ModelSAN-90

P/NSAN-90 + Option 5 + Option 50

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Type: USB / Computer Controlled

Equipment Type: Modular

Configuration: Superheterodyne Receiver

Frequency: 9 kHz to 9 GHz

Resolution Bandwidth: 0.1 Hz to 10 MHz

Analysis Bandwidth: 50 MHz, 100 MHz (Optional)

Realtime Analyzer: Yes

Video Bandwidth: 0.1 Hz to 10 MHz

Spectrum Recording: Yes

DANL: -168 to -141 dBm/Hz

Accuracy: 0.5 ppm (TCXO)

Image Rejection: 95 dBc

Interface: USB 3.0, USB Type-C

Impedance: 50 Ohms

Connector: N Type, N Type - Female

Detector: PosPeak, NegPeak, Sample, Average, RMS, MaxPower

Input Power: 10 to 23 dBm

Phase Noise: -119 to -74 dBc/Hz

Sweep Time: 4 GHz/s to 1 THz/s

Storage Temperature: -40 to 85 Degree C

Operating Temperature: -40 to 65 Degree C

Dimension: 163 x 66 x 37 mm

Weight: 420 g

Including Option 5 and Option 50

Datasheet
