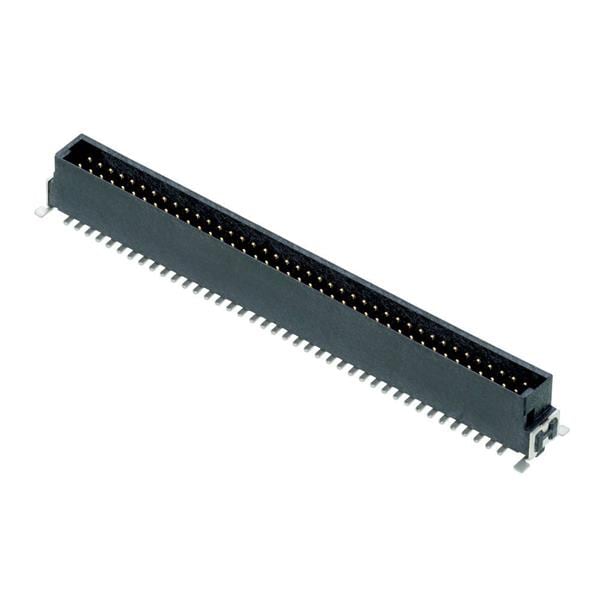

Pitch: 1.27 mm (0.05 in)
Unit Weight: 2 g
Stack Height: 6.75 mm
Current Rating: 1.2 A
Mounting Angle: Vertical
Mounting Style: Mounting Peg
Number of Rows: 2 Row
Voltage Rating: 100 VAC
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 80 Position
Insulation Resistance: 10 GOhms
Termination Post Length: 4 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
