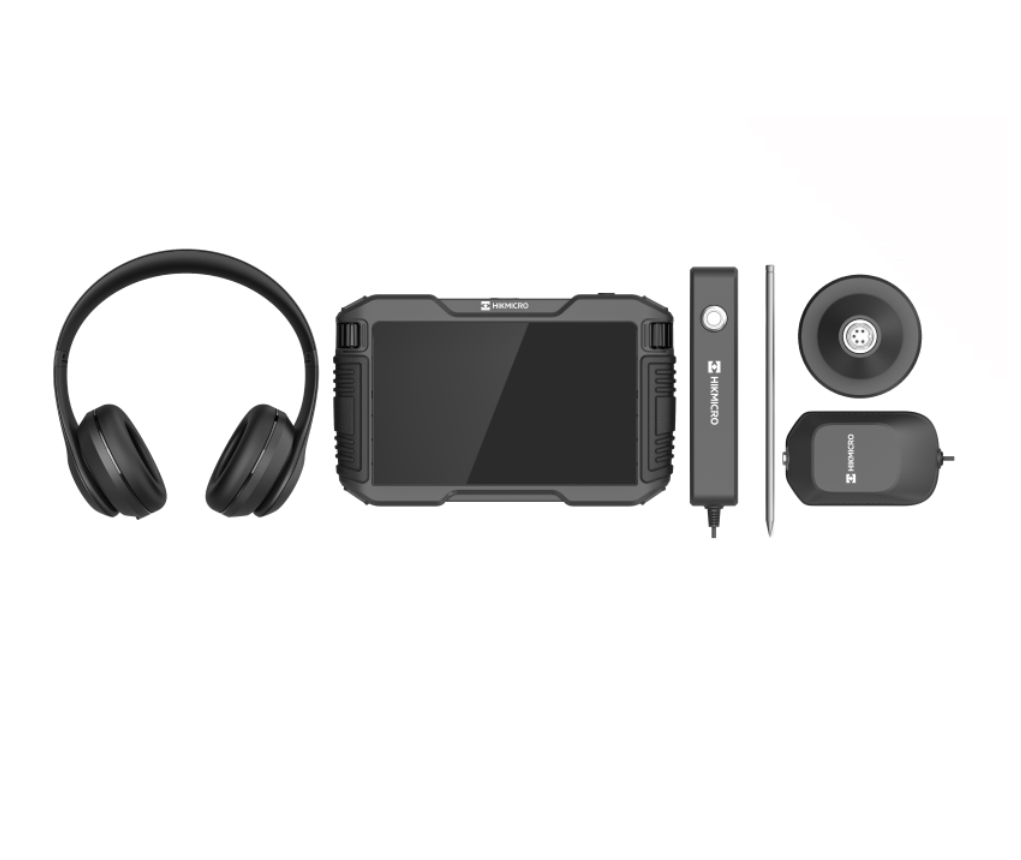

HIKMICRO AD21P Acoustic Leak Detector (150~7500 Hz)

Acoustic

Frequency Range: 150 ~ 7500 Hz

Band Pass Filters

Indoor low frequency 150 Hz to 3000 Hz

Indoor mid-frequency 3000 Hz to 6000 Hz

Indoor high frequency 4500 Hz to 7500 Hz

Indoor all-pass 150 Hz to 7500 Hz

Amplification: Manual

SuperDetect: Yes

Image Display

Display: 1024 × 600 Resolution, 7"LCD Touch Screen

Screen Brightness: Manual /Auto

Data Storage and Communication

Storage Media: Built-in EMMC (4GB)

Image Storage Capacity: Approx. 60,000 Images, viewable only on PC

Audio Storage Capacity: Approx. 10 hours, viewable only on PC

Audio File Format: .wav

Image Format: JPEG

General

USB Interface : USB 2.0, USB Type-C

EMC: EN55032:2015+A11:2020 EN50130-4:2011+A1:2014 EN61000-3-3:2013

Working Temperature Range : -10 °C to 50 °C (14 °F to 122 °F)

Drop Test Height : 1.2 m(3.93 ft)

Weight:

Main Unit: 781 g (1.72 lb)

Hand held sensor: 249 g (0.54 lb)

Pick-up sensor: 488 g (1.08 lb)

Headset: 214g(0.47 lb)

Standard package: 3000g(6.61 lb)

Storage Temperature Range : -40°C to 70°C (-34°F to 142°F)

Relative Humidity: ＜ 90 % non-condensing

Battery Type: Rechargeable Li-ion Battery

Battery Operating Time : 11h

Battery Charging Time: 4h

Protection Level: Main Unit: IP40, Hand held sensor: IP54; Pick-up sensor: IP66

Datasheet
