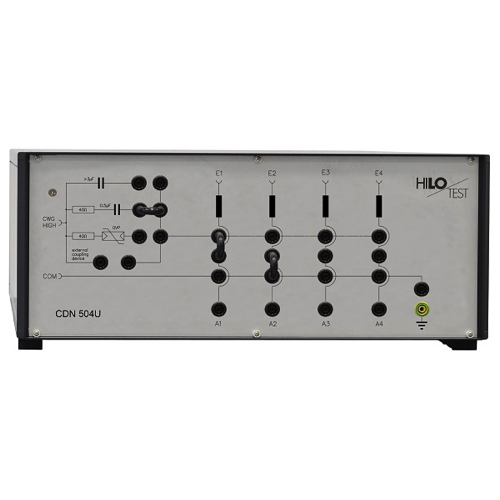

For applying the impulse output voltage of the Combination Wave /Ring Wave Generator to interconnection lines of the equipment under test, acc. to IEC 61000-4-5/12
Rated voltage: 250VAC / 350VDC
Rated current: 6A
Max. test voltage: 5.0 kV, 1.2/50µs, 10/700 µs
Max. test current: 2.5 kA, 8/20µs
Coupling Impedance, selectable:
Surge Coupling acc. IEC 61000-4-5: 40Ω + 0.5μF; 40Ω + OVP
Ringwave Coupling acc. IEC 61000-4-12: >3 μF
Decoupling inductors, current compensated: L1 – L4: 20 mH
Dimensions: 19"-cabinet W * H * D 450*180*360mm³
Weight: 9.5 kg
