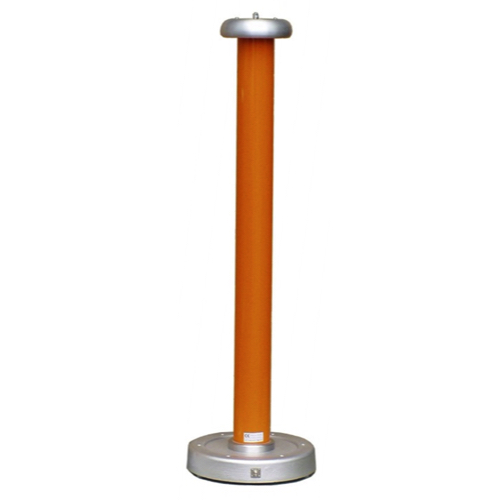

Rated input voltage (DC): 160 kV
Rated input voltage (AC eff.): 120 kV
Rated input voltage (Pulse 1.2/50µs): 250 kV
Divider ratio (DC): 5000:1 (± 1%)
HV-resistor: 240 MΩ
HV-capacitor: 140 pF
Rise time: 35 ns
Bandwidth: 10 MHz
Dimensions:
Socket (∅/L x B x H): 360 mm
Undercarriage (L x W): -
Wheels / lockable: -
Height: 1350 mm
Weight: 20 kg
Cable length: 10 m
Environment Conditions
Temperature range: 5 °C - 40 °C
Temperature error: < 0.2 % (from -5 °C to 40 °C)
Relative humidity: Maximum 80% for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Operating Altitude: Up to 1000 m above sea level
