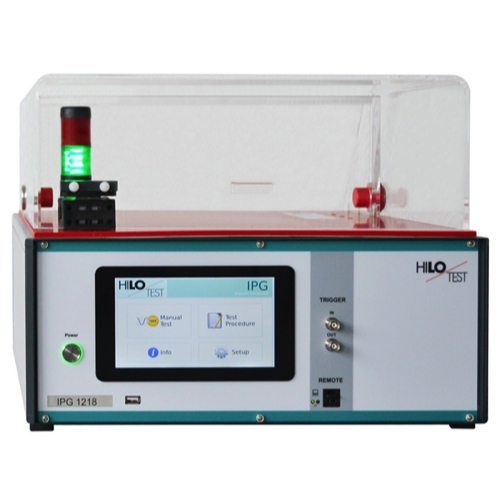

Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External Trigger input/ output: switch/ 10V
Connector for external safety interlock loop: 24 V=
External red and green warning lamps: 24 V=, 40 mA
Mains power: 90V – 264V / 50/60 Hz
Dimensions of desk top case (W * H * D): 450 * 180 * 500 mm³
Weight: 18 kg
Generator section
Peak value of impulse output voltage, selectable: 0.8 / 1.0 / 1.5 / 2.5 / 4 / 5 / 6 / 8 kV, +0 %/-10 %
Waveform of impulse output voltage (acc. to IEC 60): 1.2/50 µs ± 30 % / 20 %
Max. stored energy: 0.5 Joule
Resistor in series to the output (RS CS): 500 Ω
Output polarity, selectable: pos / neg / alt
Charging time: < 2 sec
Trigger:
a) manual: push button
b) external: Trigger input switch
c) internal, automatic, Number of pulses, selectable: 1 - 1000 Impulse
Repetition rate, max.: 1 - 1000 s
Impulse voltage divider, built-in: ratio = 1000:1 ± 2 %
Current sense, threshold value, selectable: 1 - 250 µAs
