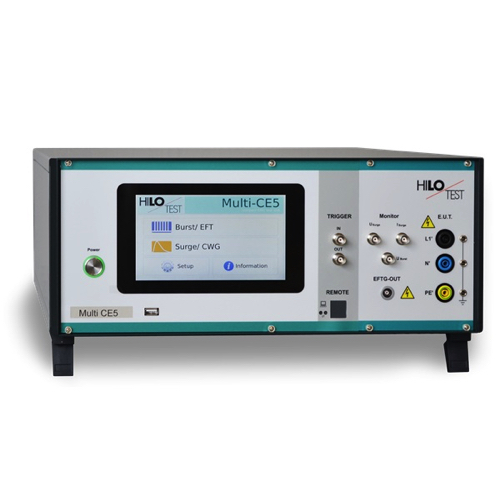

Mainframe
Microprocessor controlled touch panel 7”, capacitive
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External trigger input/output: Switch / 10 V
Connector for external safety interlock loop: 24 V =
External red and green warning lamps: 24 V=, 40 mA
Mains power: 90 V - 264 V, 50/60 Hz
Dimensions of desk top case (W × H × D): 450 × 180 × 500 mm³
Weight: 25 kg
Internal 1-phased de-/coupling network (CDN)
Coupling-/decoupling network for power supply lines: L1, N, PE
Nominal voltage, nominal current: 300 V, 16 A ac/dc ≈ / 300 V, 16 A =
Coupling impedance (depending on the generator): 33 nF / 18 µF / 9 µF + 10 Ω
BURST acc. to IEC 61000-4-4: 2012
Pulse output voltage, adjustable: 0.2 - 5 kV ± 10 %
Waveform: 5/50 ns
SURGE acc. to IEC 61000-4-5: 2014
Test voltage (open circuit condition): 0.2 - 5.0 kV ± 10 %
Waveform acc. to IEC 60060: 1.2 / 50 µs ± 30/± 20 %
POWER FAIL acc. to IEC 61000-4-11/29: 2020/2020
Rated current / Inrush current: max. 16 A / 500 A
Monitor output for mains voltage and mains current: built-in
AC
Rise and fall time at 100 Ω load: 1 – 5 µs
Dip durations: 0 – 10000 cycles (0 – 200 s)
Step: 1° = 55.56 µs at 50 Hz
Display: mains voltage, mains current and inrush current
DC
Rise and fall time at 100 Ω load: 1 – 50 µs
Dip durations: 1 ms – 10 s
Interface: control of an external power source
