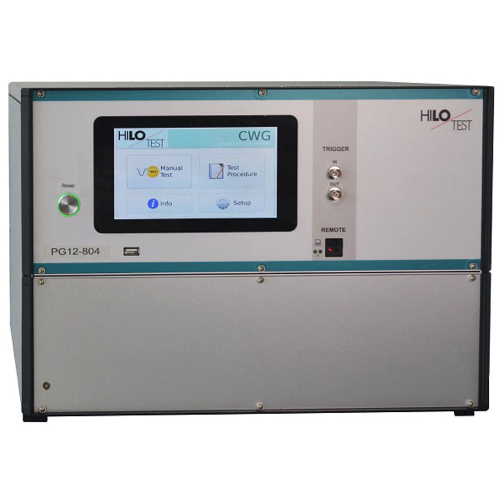

Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External trigger input/ output: Switch/ 10 V
Connector for external safety interlock loop: 24 V =
External red and green warning lamps: 24 V=, 40 mA
Mains power: 90V - 264V, 50/60 Hz
Dimensions of desk top case (W * H * D): 450*330*500 mm³
Weight: 30 kg
High- Voltage Pulse Generator acc. to IEC 61720-2
acc. to IEC 60060-1/2
Impulse output voltage, adjustable: 0.8 - 20 kV ( ± 3% )
Waveform of Impulse output voltage: 1.2 / 50 µs (±30% / ±20%)
Polarity, selectable per software (no plugs necessary): pos./neg.
Maximum stored energy Cs: 100J
Charging time for max. charging voltage: approx. 10s
Interior load capacitance Cp: 10 nF (± 10%)
Pulse forming networks to test solar modules: Cp = 10 - 183nF
