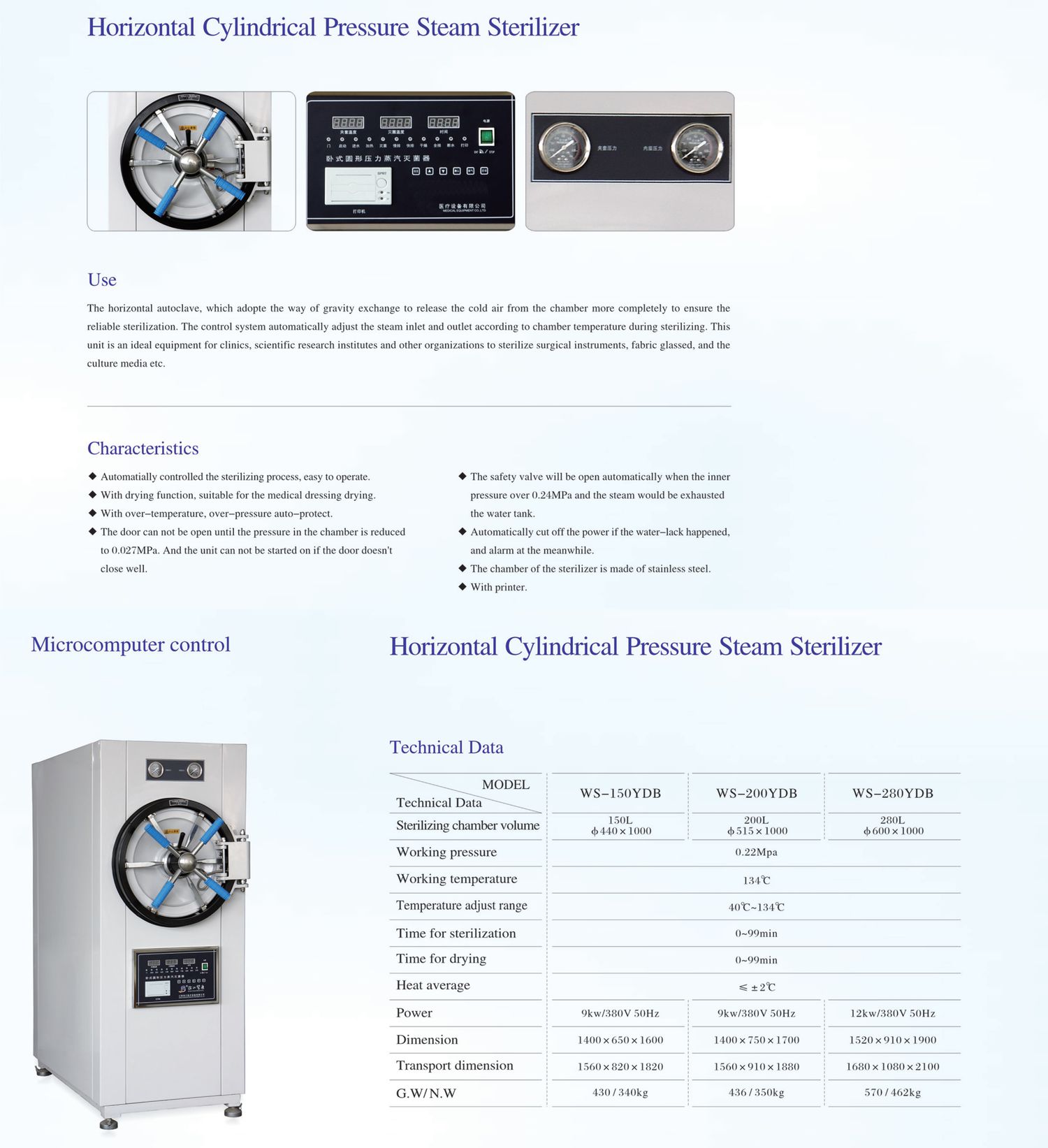

Sterilizing chamber /volume: 200L (φ515×1000mm)
Working pressure: 0.22 MPa
Working temperature: 134℃
Adjustment of temperature: 40℃ – 134℃
Time of sterilization: 0-99 min
Time of drying: 0-99 min
Heat average: ≤± 2ºC
Power: 9KW/380V 50Hz
Dimension: 1400×750×1700mm
Transport dimension: 1560×910×1880mm
G.W/N.W: 436/350 KG
Characteristics
Automatically controlled the sterilizing process, easy to operate.
With drying function, suitable for the medical dressing drying.
With over-temperature, over-pressure auto-protect.
The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn’t close well.
The safety valve will be open automatically when the inner pressure over 0.24MOa and the steam would be exhausted the water tank.
Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
The chamber of the sterilizer is made of stainless steel.
With printer.
