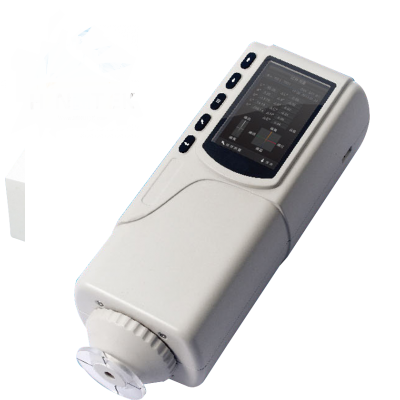

HINOTEK WSC-1B Portable Colorimeter

Display Mode: CIEL*a*b*C*h*;CIEL*a*b; CIE XYZ

Color Difference Formula: △E*ab；△L*a*b; △E*C*h

Illuminating/Viewing geometry: 8/d

Light source: LED blue light excitation

Detector: Silicon photoelectric diode

Measuring Aperture: Φ4mm

Measuring Conditions: D65

Repeatability: Standard deviation within △E*ab 0.07(Measurement conditions: Average of 30 measurements of standard white plate)

Storage: 100 pcs standard samples;20000 pcs test samples

Minimum Interval Between Measurement: Approx. 1 sec

Battery Life: More than 3000 times

Lamp Life: 3 years, more than 1.6 million times

Display: TFT ture color 2.8inch at (16:9)

Interface: USB RS232

Operating Temperature Range: -10 – 40℃（32 – 104℉）

Storage Temperature: -20 – 50℃（-4 – 122℉）

Humidity Range: Relative humidity 0 – 85% with no condensation

Weight: 450g

Dimensions: 205mm x67mm x80mm

Standard Accessories: Powder adapter, Li-ion Battery, operating instruction, white calibration cover, wristband, cross platform, 4mm measuring aperture, software, USB cable, 4mm aperture for small concave-convex surface

Operation Accessories: Miniature thermal printer
