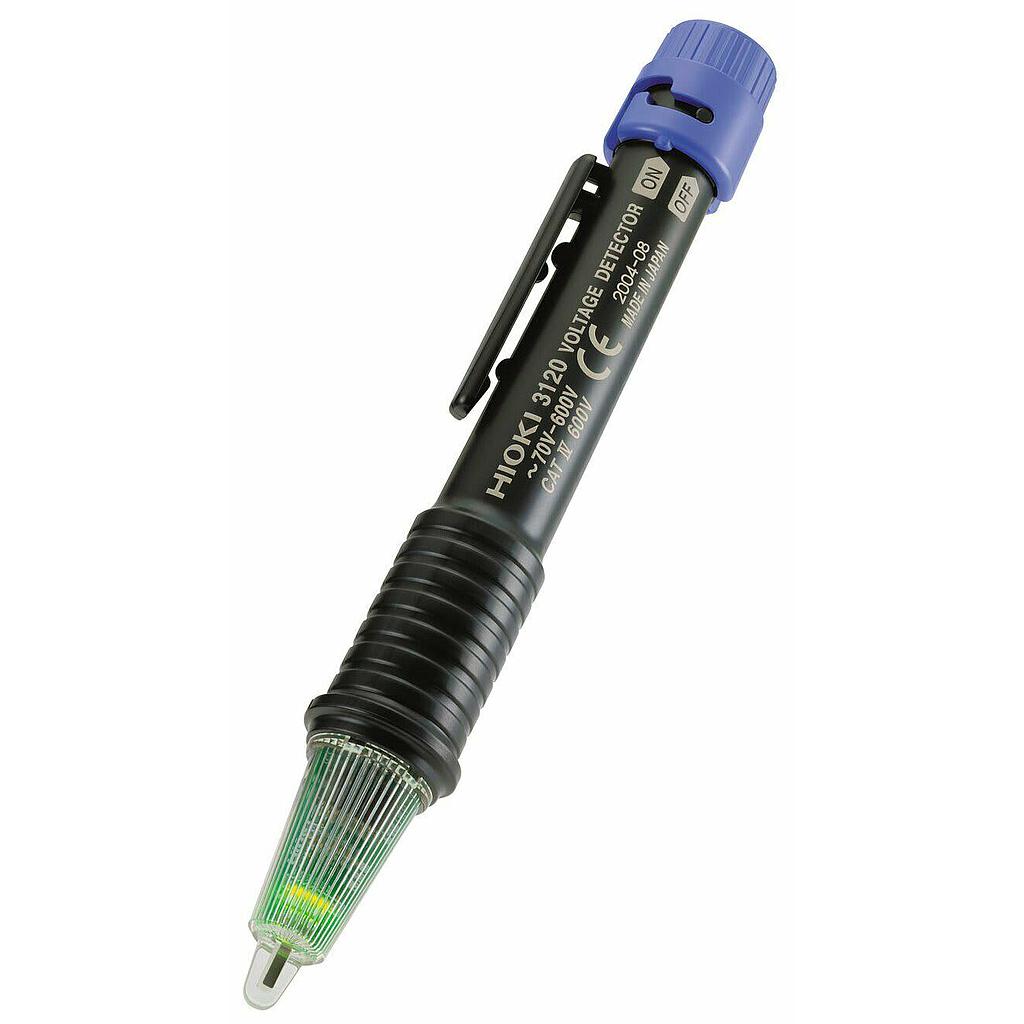

Hioki 3120 VOLTAGE DETECTOR
ManufacturerHIOKI(View more products from this manufacturer)
Model3120
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Measurement Function | Voltage Detection (for 100V Installations) |
| Voltage Range | AC 70 to 600 V, 50/60 Hz (when touching insulated wiring equivalent to IV2mm2 |
| Indication | Red LED and continuous beeping sound |
| Battery Check | Green LED |
| Power supply | AAA manganese(R03) or alkaline(LR03) batteries × 2 |
| Rated Voltage | DC 3.0 V |
| Maximum Rated Power | 170 mW(max) |
| Rated Power | 27 mW(Typ)(when switched to “ON ”and in standby) |
| Continuous Use | approx. 200 hours (when switched to“ON ” and in standy using LR03 batteries) |
| Dimensions, mass | 149 mm(5.87 in)H × φ18.5 mm(0.73 in), 38 g (1.34 oz) |
| Accessories | AAA manganese(R03) batteries(2) |
