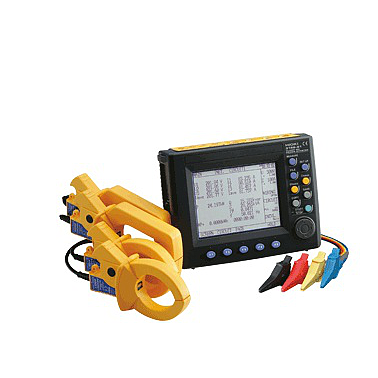

Hioki 3169-20 Power Quality Analyzer
ManufacturerHIOKI(View more products from this manufacturer)
Model3169-20
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
SPECIFICATIONS
- Measurement line type:
+ Single-phase 2-wire, single-phase 3-wire
+ Three-phase 3-wire, three-phase 4-wire
+ Voltage 4 channels, Current 4 channels
- Measurement items:
+ Voltage, Current, Active/reactive/apparent power
+ Active/ reactive power integration
+ Power factor, Frequency, Harmonic waveform value
- Measurement range:
+ 150~600V AC, 3 ranges
+ 500mA to 5 kA AC
+ Power range: 75W to 900kW
- Basic accuracy:
+ AC Voltage: ±0.2 % rdg. ±0.1 % f.s
+ AC Current: ±0.2 % rdg. ±0.1 % f.s
+ Active power: ±0.2 % rdg. ±0.1 % f.s
- Data save interval: 1~30s, 1~60min, 13 selects
- Other functions:
+ Error connect check, language selection, display hold
+ Setting backup, power shut off management, key lock
- External interfaces:
+ RS-232C
- Power supply: 100 to 240 V AC, 50/60 Hz, 30 VA max
- Product Net Weight: 1.2 kg
- Product Size: 210*160*60mm
- Supplied accessories:
+ VOLTAGE CORD L9438-53 ×1 (Black/ Red/ Yellow/ Blue)
+ Power cord ×1, Instruction Manual ×1, Quick Start Manual ×1
+ CD-R ×1 (RS-232C interface operating manual) ×1
+ Input cord label ×1
- The warranty period: 12 month
