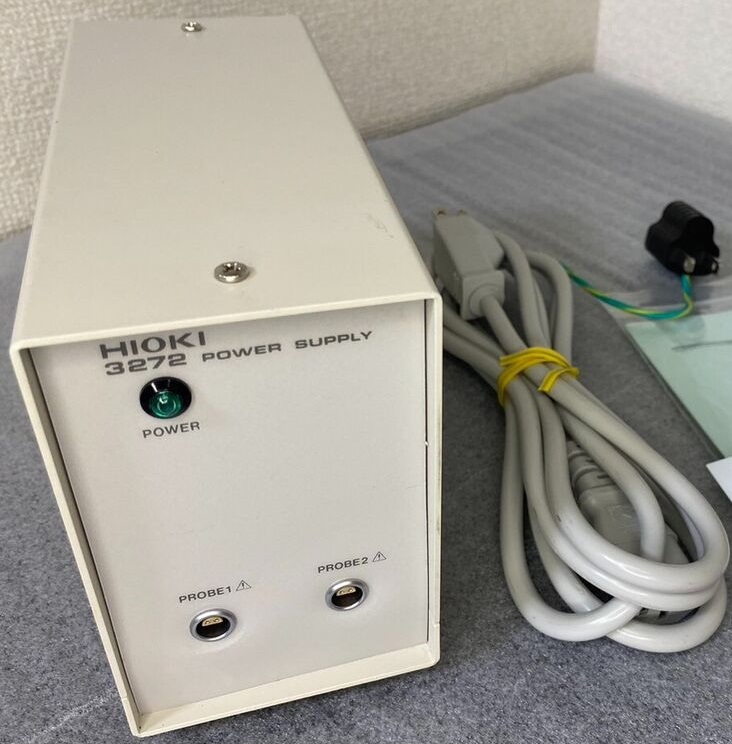

HIOKI 3272 DC Power Supply

Power Supply Unit for Outputting Current Probe Signals to Memory HiCorders and Oscilloscopes

Compatible sensors: The CT6700, CT6701: up to 2 units

Note: When measuring the maximum peak current, only one unit

The 3273-50, 3274, 3275 or 3276: up to 1 unit

Note: May be used with up to 2 units of Model 3273 (not -50 type), and up to 2 units of Models 3273-50, 3274, 3275 or 3276 on condition that the measurement current is sufficiently low.

Note: The CT6710, CT6711 cannot be used

Number of power supply connectors2

Output: ±12 V ±0.5 V, 600 mA

(sum total of all channels)

Power supply : 100 V or 120/ 220/ 240 V AC (specify when ordering), 50/60 Hz 20 VA max.

Dimensions and mass : 73 mm (2.87 in)W × 110 mm (4.33 in)H × 186 mm (7.32 in)D, 1.1 kg (38.8 oz)

Included accessoriesPower cord ×1, Instruction manual ×1, Spare fuse ×1
