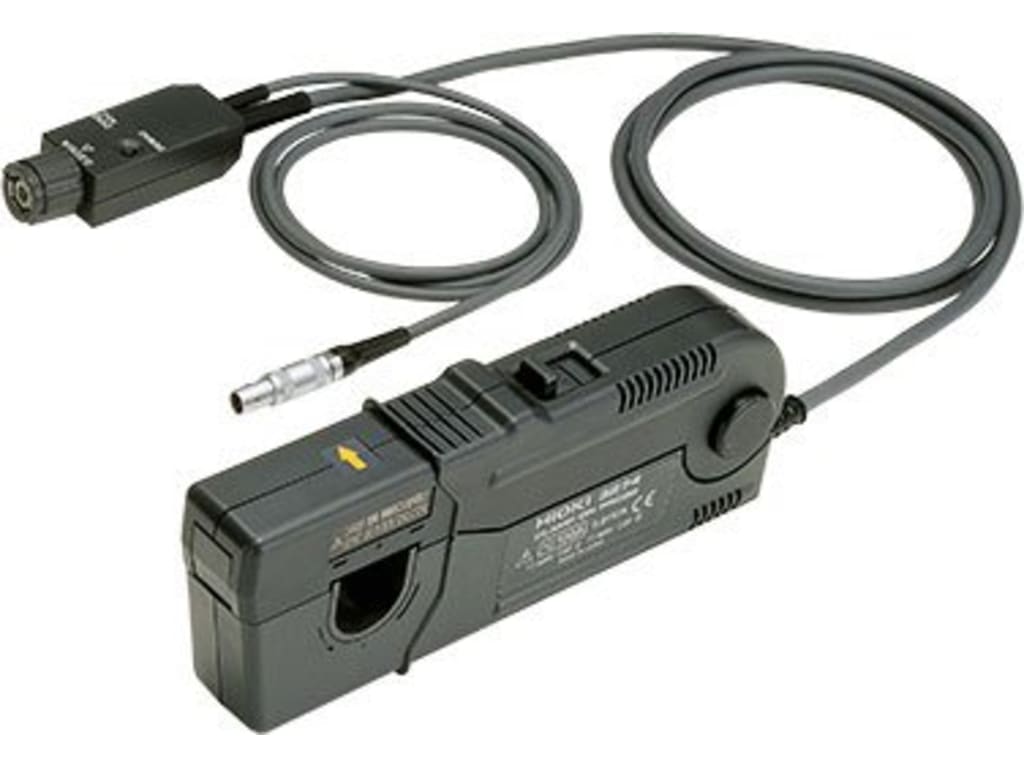

Hioki 3274 Current Probe for Oscilloscopes (150A RMS, 10 MHz)

- Frequency bandwidth: DC to 10 MHz (-3 dB)
- Rise time: 35 ns or shorter
- Noise level: 25 mA rms max. (bandwidth limited to 20 MHz)
- Continuous allowable input: 150 A rms (requires derating at frequency)
- Max. allowable peak input: 300 A peak (non continuous)
500 A peak (pulse width: 30 μs or shorter)
- Amplitude accuracy: (30 min. after power-on, after degaussing and zero-adjustment) ±1.0 % rdg. ±1 mV f.s. (DC, 45 to 66 Hz, 0 to 150 A rms)
±2.0 % rdg. (DC, 45 to 66 Hz, 150 A to 300 A peak)
- Output rate: 0.01 V/A *Device output is terminated internally. Use with a device having a 1 MΩ input resistance or higher.
- Measurable conductors: Insulated conductor
- Core diameter: φ 20 mm (0.79 in)
- Power supply: ±12 V ± 1 V, 5.5 VA max.
- Dimensions and mass: 176 mm (6.93 in)W × 69 mm (2.72 in)H × 27 mm (1.06 in)D, 500 g (17.6 oz)
- Sensor cable BNC terminal: 2 m (6.56 ft), Power cable: 1 m (3.28 ft)
- Accessories: Instruction manual ×1, Carrying case × 1
