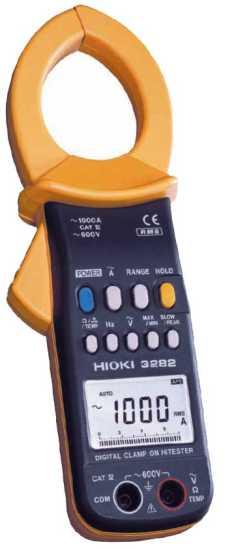

HIOKI 3282 AC DIGITAL CLAMP ON HiTESTER
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| 3282 | ||
| AC Current | 30.00 to 1000 A, 3 ranges (40 Hz to 1 kHz, True RMS), Basic accuracy: ±1.0 % rdg. ±5 dgt. | |
| AC Voltage | 300.0/ 600 V, (40 Hz to 1 kHz, True RMS) Basic accuracy: ±1.0 % rdg. ±3 dgt. | |
| Crest factor | 2.5 and under (1.7 at 600 A, 1.7 at 600 V) | 2.5 and under (1.7 at 1000 A, 1.7 at 600 V) |
| Monitor, Analog output | None | |
| Frequency | 30.0 Hz to 1000 Hz, Basic accuracy: ±0.3 % rdg. ±1 dgt. | |
| Resistance, Continuity check | 1000 Ω/ 10.00 kΩ, Basic accuracy: ±1.5 % rdg. ±5 dgt., Continuity: Beep sound at 30 Ω or less | |
| Other function | Current wave peak value, Voltage wave peak value, Distortion check (Crest factor 1.00 to 5.00), Maximum/ Minimum/ Average value record function, Data hold, Auto power off | |
| Display | LCD, Max. 3000 dgt., Display refresh rate: 4 times/s (at FAST), 1 time/3s (at SLOW), 4 times/s (bar graph) | |
| Power supply | Stacked manganese battery (6F22) ×1, Continuous use: 45 hours | |
| Core jaw dia. | φ46 mm (1.81 in) | |
| Dimensions, mass | 62 mm (2.44 in) W × 230 mm (9.06 in) H × 39 mm (1.54 in) D, 400 g (14.1 oz) | |
| Supplied accessories | TEST LEAD L9207-10 ×1, CARRYING CASE 9399 ×1, Hand strap ×1, Stacked manganese battery (6F22) ×1, Instruction Manual ×1 | |
