Hioki 8205-10 MEMORY Hioki HiCORDER 8205-10

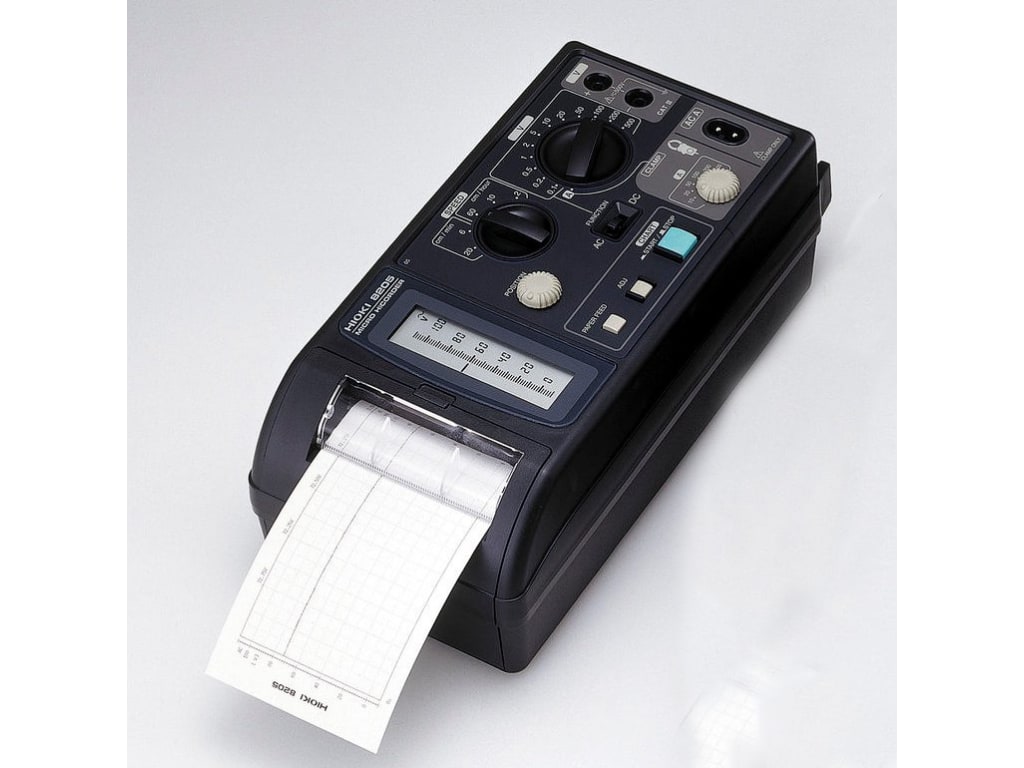

Name: Hioki 8205-10 MEMORY Hioki HiCORDER 8205-10
Brand: HIOKI

ManufacturerHIOKI(View more products from this manufacturer)

Model8205-10

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Specification
- Measurement ranges:
+ Voltage: DC /AC:0.1 V tới 500 V f.s. 12 ranges
+ Current AC: 10A tới 100A AC 4 ranges
+ 10 A tới 500 A AC 6 ranges
+ 10 A tới 1000 A AC 7 ranges
- Sampling period: 10ms
- Frequency characteristic:
+ AC/DC voltage range: +0.5 dB to -3 dB from 20 Hz to 30 kHz.
+ AC current range: Frequency characteristic is determind by the clamp sensor.
- Paper feed speed: 20 cm/minute to 2 cm/hour, 5 ranges
- Number of input channels: 1 channel AC or DC voltage, or 1 channel AC current
- Accuracy:
+ Voltage: ±2 % f.s. (ACV/45 Hz to 66 Hz)
+ Current: ±3.53 % f.s.
- Power supply:
+ 100 to 240 V AC (50/60 Hz)
+ 9.5 to 14 V DC
- Dimensions, mass: 250×122×93.5mm, 1.2 kg
- Supplied accessories: Recording paper 9235 (1 roll), roll paper holder (2), Power cord (1), CONNECTION CORD 9257 (1), CARRYING CASE 9344 (1)
- The warranty period: 12 month

Measurement ranges	DC /AC Voltage: 0.1 V to 500 V f.s. 12 ranges AC Current: 10 A to 100 A AC 4 ranges (with optional CLAMP ON SENSOR 9650) 10 A to 500 A AC 6 ranges (with optional CLAMP ON SENSOR 9651) 10 A to 1000 A AC 7 ranges (with optional CLAMP ON SENSOR 9668)
Sampling period	10 ms
Frequency characteristic	AC/DC voltage range: +0.5 dB to -3 dB from 20 Hz to 30 kHz. AC current range: Frequency characteristic is determind by the clamp sensor.
Paper feed speed	20 cm/minute to 2 cm/hour, 5 ranges
Number of input channels	1 channel AC or DC voltage, or 1 channel AC current (Simultaneous recording not available, one channel may be either type, input is voltage isolated.)
Accuracy	Voltage: ±2 % f.s. (ACV/45 Hz to 66 Hz), Current: ±3.53 % f.s. (used with CLAMP ON SENSOR 9651 / option, AC 500 A range)
Power supply	100 to 240 V AC (50/60 Hz) or 9.5 to 14 V DC, 2 way
Dimensions, mass	250 mm(9.4 in)W × 122 mm(4.8 in)H × 93.5 mm(3.66 in)D, 1.2 kg (42.33 oz)
Accessories	Recording paper 9235 (1 roll), roll paper holder (2), Power cord (1), CONNECTION CORD 9257 (1), CARRYING CASE 9344 (1)
