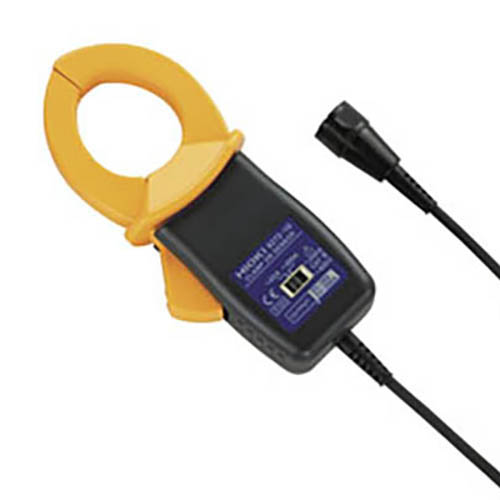

- Rated current 20 A AC, or 200 A AC (selectable)
- Max. allowable input 20 A range: 50 A rms Max. ; 200 A range: 300 A rms Max.
- Accuracy: Amplitude: ±0.3 % rdg. ±0.01 % f.s.
Phase: ±0.2 ° (45 to 66 Hz)
- Frequency characteristics: 1 Hz (±2 % rdg. ±0.1 % f.s.) to 100 kHz (±30 % rdg. ±0.1 % f.s.)
- Output rate with the 9555-10 2 V/20 A rated current range, or 2 V/200 A rated current range (voltage output with the Sensor Unit 9555-10, use with a device having a 1 MΩ input resistance or higher)
- Max. rated voltage to earth: 600 V rms (CAT III)
- Core diameter: φ 46 mm (1.81 in)
- Power supply :DC ±11 V to ±15 V (Power suppled via the 9555-10, which supports 100 to 240 V AC)
- Power consumption: 5 VA Max. (when measuring 200 A)
- Dimensions and mass: 78 mm (3.07 in) W × 188 mm (7.40 in) H × 35 mm (1.38 in) D, 430 g (15.2 oz), cord length: 3 m (9.84 ft)
- Accessories: Carrying case 9355 ×1, Instruction manual ×1, Mark bands ×6
