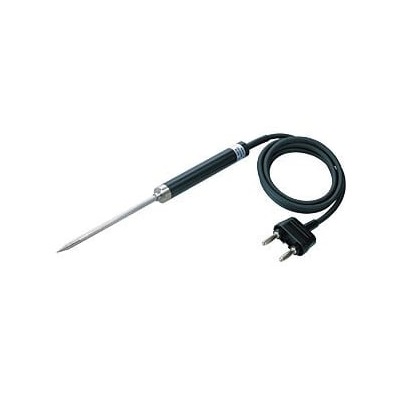

HIOKI 9475 Shealth Type Temperature Probe (for Hioki 3441, 3442)

Temperature Probe for Hioki Temperature HiTester 3441, 3442

Material type: K type thermocouple (Chromel / Almel)

Contact type: Non-grounded

Tolerance: At -40°C (-40°F ) and more , the greater of ±1.5°C (±2.7°F) and ±0.4% of the measured value

Response (90%): ≈10 sec

Size of Sheath (mm)/(inch): φ 4.8 × 100 (mm)/φ 0.19 × 3.94 (in)

Compensation lead: Conventional type (-20~90˚C, -4~194˚F), 1m (3.28 ft)

Grip heat resistance: 80°C (176°F)

Measurement temperature: −100~500°C/–148~932°F
