INPUT POWER
Rated voltage: 220 VAC
Voltage range: 200–260 VAC
Phase: Single-phase, 2-wire (L, N)
Input current: 7 A
OUTPUT POWER
Output voltage 1: 110 VDC
Output voltage 1 accuracy: < 5% (load 0–100%)
Output waveform: Pure DC
Output voltage 2: 220 VDC
Output voltage 2 accuracy: < 5% (load 0–100%)
Output waveform: Pure DC
Peak efficiency: > 88%
Output power: 1000 W
PROTECTION
Protection type: Overload, short circuit, auto recovery after fault clearance
Protection method: Electronic circuit
ENVIRONMENTAL CONDITIONS
Operating temperature: Minimum < 0°C, maximum > 60°C
Operating humidity: Minimum < 10%, maximum > 80%

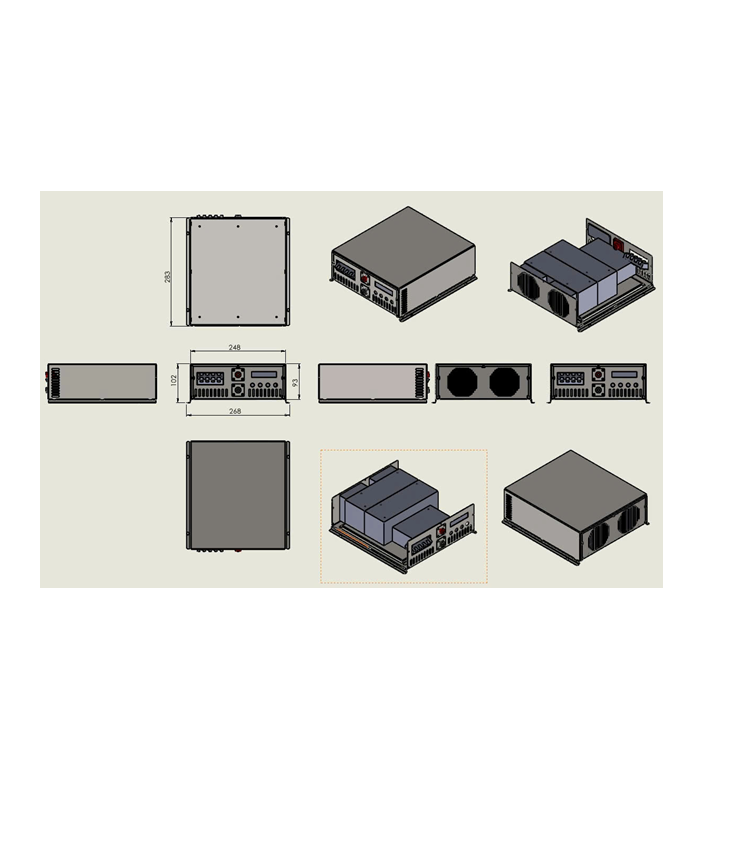

DIMENSIONS / WEIGHT
Dimensions (W × D × H) (mm): Desktop / Tower / 19-inch rack mount type
Net weight: < 7 kg
