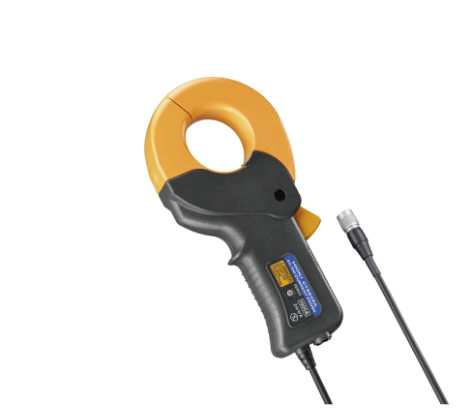

Rated current: 1000 A AC/DC
Max. allowable input: 1200 A (requires derating at frequency or temperature)
Frequency characteristics: DC to 20 kHz, Phase: DC to 20 kHz
Amplitude and phase accuracy
- DC ±0.3 % rdg. ±0.02 % f.s.
- DC < f ≤ 100 Hz ±0.3 % rdg. ±0.01 % f.s.
- Defined to 20 kHz
Power consumption: 7.5 VA max. (at 1000 A/55 Hz, ±12 V power requirement)
Output voltage: 2 mV/A (voltage output with the Sensor Unit 9555-10, use with a device having a 1 MΩ input resistance or higher)
Core diameter: φ 50 mm (1.79 in)
Power supply: DC ±11 V to ±15 V (Power suppled via the 9555-10, which supports 100 to 240 V AC)
Dimensions and mass: 238 mm (9.37 in)W × 116 mm (4.57 in)H × 35 mm (1.38 in)D, cord length: 3 m (9.84 ft), 990 g (34.9 oz)
Accessories: Instruction manual ×1, Mark bands ×6, Carrying Case
