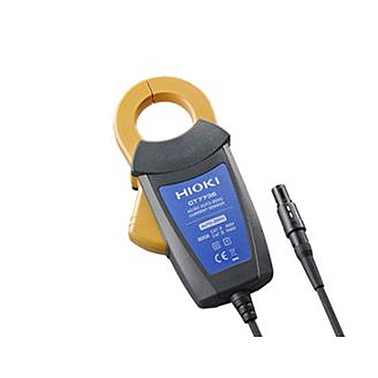

Rated measurement current:600 A AC/DC
Max. measurement current:600 A (requires derating at frequency)
Max. allowable peak input900 A peak
Bandwidth:DC to 5 kHz (-3dB)
Typical accuracy: ±1.8 deg. (DC < f ≤ 66 Hz)
Output rate: 1 mV/A
Max. rated voltage to earth:AC/DC 600 V (CAT IV)
AC/DC 1000 V (CAT III)
Core diameter: φ 33 mm (1.30 in) or less
Output connectors:HIOKI PL 14
Dimensions and mass:64 mm (2.52 in)W × 160 mm (6.30 in)H × 34 mm (1.34 in)D, 320 g (11.3 oz), Cable length 2.5 m (8.20 ft)
Accessories:None
