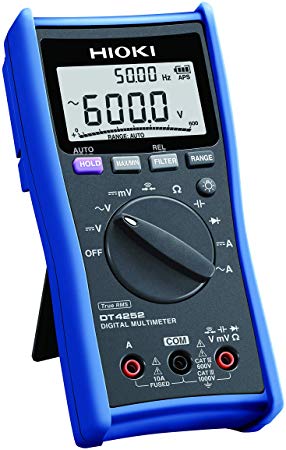

HIOKI DT4252 Digital Multimeter

DC V: 600.0 mV to 1000 V, ±0.5 % rdg /±5 dgt.

AC V(true RMS) : 6.000 V to 1000 V/±0.9 % rdg /±3 dgt

Resistance 600.0 Ω to 60.00 MΩ /±0.7 % rdg. ±5 dgt.

DC Current:6.000 A / 10.00 A /±0.9 % rdg. ±5 dgt.

AC Current (True RMS): 6.000 A / 10.00 A/±1.4 % rdg. ±3 dgt.

C (capacitance): 1.000 μF to 10.00 mF /±1.9 % rdg. ±5 dgt.

Frequency: 5 Hz to 9.999 kHz, 3 ranges, 99.99 kHz (only for AC V)

Basic accuracy: ±0.1 % rdg. ±1 dgt.

Continuity, Diode test

Other functions: Filter function, Display value hold, Auto hold, Max/Min/Average value display, Relative display, Auto-power save, USB communication (option)

Display:4-digits LCD, max. 6000 digits, bar graph

Power supply: LR03 alkaline batteries ×4,

Continuous use: 130 hours (back light OFF)

Dimensions and mass 84 mm W × 174 mm H× 52 mm D, 390 g

Accessories: TEST LEAD L9207-10 ×1, Holster ×1, Instruction Manual ×1, LR03 Alkaline Battery ×4
