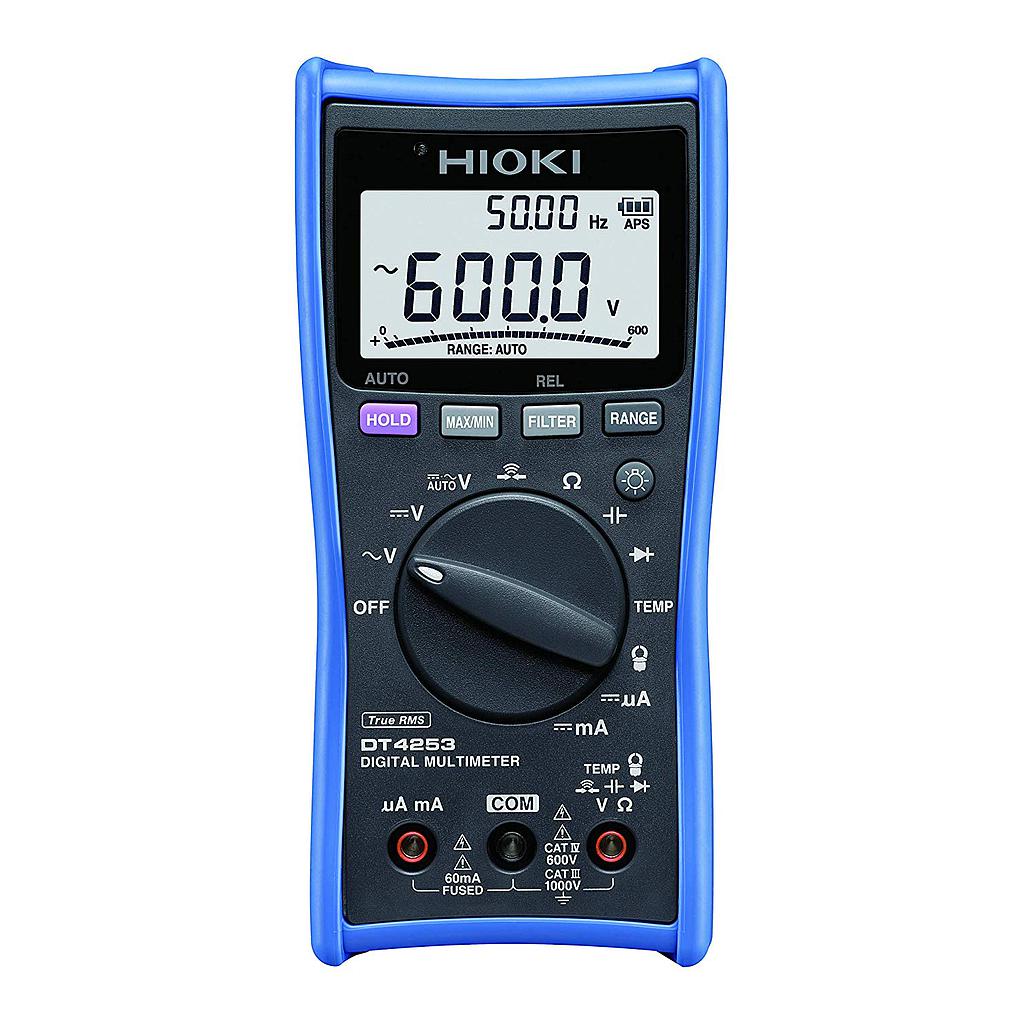

HIOKI DT4253 DIGITAL MULTIMETER (true RMS)

DCV: 600.0 mV to 1000 V

Basic accuracy: ±0.5 % rdg. ±5 dgt.

ACV (true RMS): 6.000 V to 1000 V

Basic accuracy: ±0.9 % rdg. ±3 dgt

Resistance: 600.0 Ω to 60.00 MΩ

Basic accuracy: ±0.7 % rdg. ±5 dgt.

DC Current: 60.00 μA to 60.00 mA

Basic accuracy: ±0.8 % rdg. ±5 dgt.

C (capacitance): 1.000 μF to 10.00 mF

Basic accuracy: ±1.9 % rdg. ±5 dgt.

Frequency: 5 Hz to 9.999 kHz,

Basic accuracy: ±0.1 % rdg. ±1 dgt.

Continuity Check, Diode test

Other functions: Filter function, Display value hold, Auto hold, Max/Min/Average value display, Relative display, Auto-power save, USB communication (option)

Display: 4-digits LCD, max. 6000 digits, bar graph

Power supply LR03 alkaline batteries ×4,

Dimensions and mass: 84 mm W × 174 mm H× 52 mm D, 390 g

Accessories: TEST LEAD L9207-10 ×1, Holster ×1, Instruction Manual ×1, LR03 Alkaline Battery ×4
