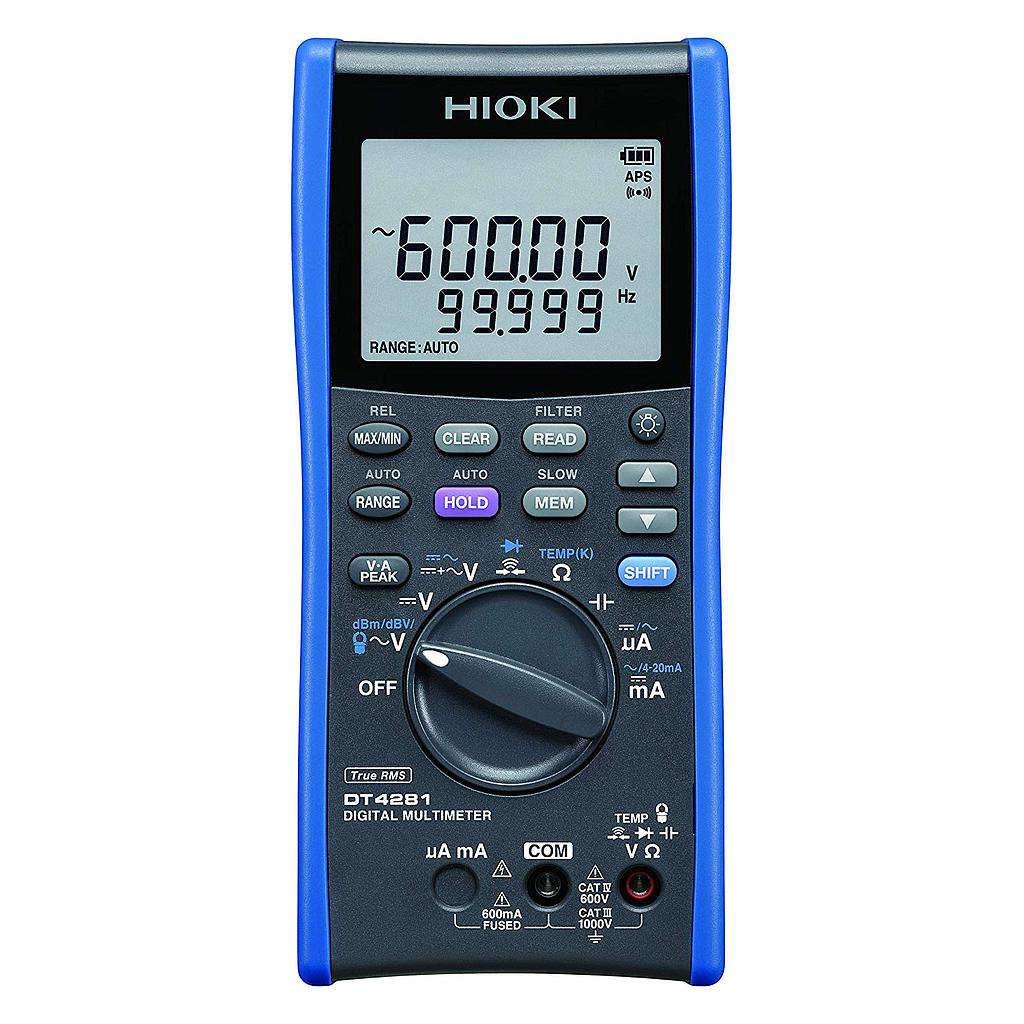

HIOKI DT4281 DIGITAL MULTIMETER

DCV: 60.000 mV to 1000.0 V /±0.025 % rdg ±2 dgt.

ACV(true RMS): 60.000 mV to 1000.0 V /±0.2 % rdg ±25 dgt

DC V+ ACV(true RMS): 6.0000 V to 1000.0 V /±0.3 % rdg ±30 dgt

Resistance: 60.000 Ω to 600.0 MΩ /±0.03 % rdg. ±2 dgt.

DCA: 600.00 μA to 600.00 mA / ±0.05 % rdg. ±5 dgt.

ACA (True RMS): 600.00 μA to 600.00 mA /±0.6 % rdg. ±5 dgt

C (capacitance): 1.000 nF to 100.0 mF /±1.0 % rdg. ±5 dgt.

Continuity Check ,Diode test

Frequency AC V, DC+AC V, AC A: 0.5 Hz to 500.00 kHz /±0.02 % rdg. ±3 dgt.

Temperature K: -40.0 °C to 800.0 °C (optional DT4910)

Other functions :Filter function (Remove harmonic noise, use only at 600 VAC, 1000 VAC ranges), Display value hold, Auto hold, Max/Min value display, Sampling select, Relative display, Measurement memory (400 data), Auto-power save, USB communication (option), 4-20 mA % conversion

Display: 5-digits LCD, max. 60000 digits

Power supply: LR6 (AA) alkaline batteries ×4,

Continuous use: 100 hours

Dimensions and mass 93 mm W × 197 mm H× 53 mm D, 650 g

Accessories TEST LEAD L9207-10 ×1, Instruction Manual ×1, LR6 Alkaline Battery ×4
